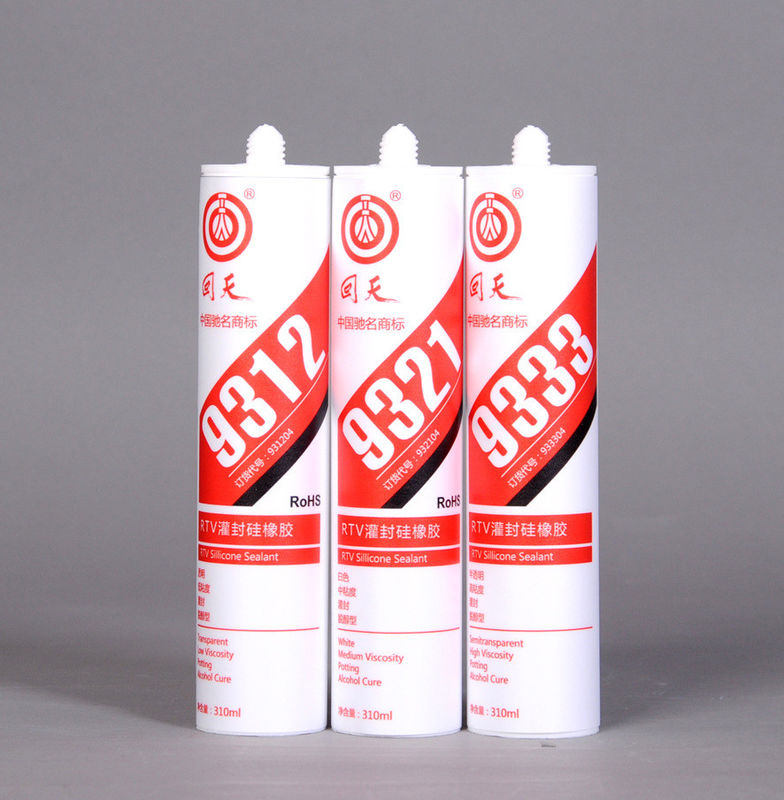

9333 High Performance RTV Silicone Sealant For the sealing and bonding of LCD decorative lighting and LED lights

9333 High Performance RTV Silicone Sealant For the sealing and bonding of LCD decorative lighting and LED lights

9333 High Performance RTV Silicone Sealant For the sealing and bonding of LCD decorative lighting and LED lights

Product Details:

Place of Origin: China
Brand Name: Huitian
Model Number: 9333

Payment & Shipping Terms:

Minimum Order Quantity: 1000kg
Price: Negotiable
Packaging Details: 310ml/Tube 25tubes/Carton
Supply Ability: 100MT/month
Contact Now
Detailed Product Description
Color: Translucent Density: 1.06g/ml
Tensile Strength: 1.2Mpa Shelf Life: 12 Months
Work Temperature: -60-200℃ Composition: Polysiloxane

Product Features:

Ø Single component, condensation type.

Ø Room temperature fast curing.

Ø Ethyl alcohol released after curing, non-corrosive to electronic components

ØHigh adhesion to aluminum, copper, stainless steel and other metal

Ø High & low temperature resistant

Ø Fully meet the requirements of the EU ROHS

Item Unit Typical Value
Color   Translucent
Component of Basic Materials   Polysiloxane
Density g/cm3 1.06
Dry to touch min 3
Handing Curing Time min 40
Initial Curing Time hour 3
Full Curing Time hour 24
Tensile Strength After Curing 1.2 Mpa
Elongation at break

After Curing

25℃

% 230
Harness Shore A 31
Volume Resistivity Ω*cm 1x1015
Dielectric Strength KV/mm 22
Dielectric constant 1.2MHz 2.6
Work Temperature -60~200



Main Applications:

Ø Sealing protection element connection port

Ø Bonding and sealing all kinds of home appliance

Ø sealing and anti leakage, waterproof, shockproof for appliances components



● How to Use

Ø Clean the surface: remove the rust, dust and oil etc.

Ø Glue onto the surface has been cleaned.

Ø Curing: which component was coated with adhesive and put it in the air, after that it is the curing process (At room temperature and 55% relative humidity). Adhesive curing 2 ~ 4mm depth. With the extension of time, the curing depth increasing.



Packing:

Ø 310ml/Tube 25tubes/Carton



● Storage:

Ø Keep it away from children.

Ø Use it in ventilated places

Ø In case of contact with skins, wipe and then flush with clear water.

Ø In case of contact with eyes, flush with clear water immediately and go to hospital for checking.

Ø Store it in dry and shady places at the temperature of 8~28℃

Ø Storage life: 12 month.
