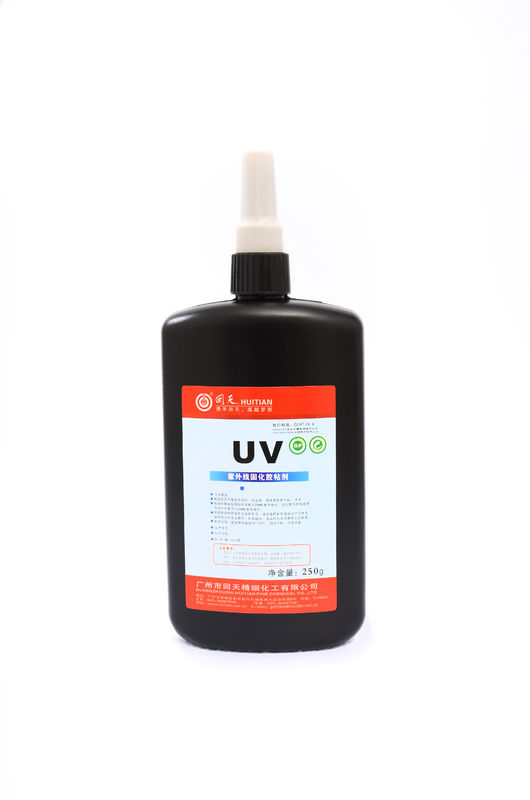

3520 (HTU-3335) Single Component UV Curing Adhesive , low Viscosity Modified Acrylate adhesive

3520 (HTU-3335) Single Component UV Curing Adhesive , low Viscosity Modified Acrylate adhesive

3520 (HTU-3335) Single Component UV Curing Adhesive , low Viscosity Modified Acrylate adhesive

Product Details:

Place of Origin: China
Brand Name: Huitian
Certification: ISO-10993
Model Number: 3520

Payment & Shipping Terms:

Minimum Order Quantity: 1000kg
Price: Negotiable
Packaging Details: 250g/Bottle, 10 bottles/Box
Supply Ability: 100MT/month
Contact Now
Detailed Product Description
Color: Amber Density: 1.05g/ml
Viscosity: 600-1000 MPa.s Shelf Life: 12 Months
Work Temperature: -30-90℃ Composition: Modified Acrylate

Product Features:



3520 (HTU-3335) UV curable adhesive is single component, low Viscosity, UV curing, Modified Acrylate adhesive, specially applying for Plastics and Metal.



Typical use:



Plastics to Glass/Metal, Especially for PMMA bonding



Property before curing:

Appearance: Amber Liquid

Density (g/cc): 1.05

Viscosity (mPa*25C): 600—1000

Main Material: Modified Acrylate



Curing Situation: Request

Lamp Intensity (W) 1000

(High-voltage mercury lamp)

Curing Energy(mj/cm2) 600



Properties after curing:

(1000W HVML, 40S) Request

Glass State Temperature (℃): 45

Hardness (Shore D): 30

Work Temperature: -30-90



Physical Properties after Curing: Request

Tensile Strength (Glass to PMMA)(Mpa): 12

Bonding Strength(PMMA to PMMA)

(Curing Situation: 40s @ 100mW/cm2, 365nm)



Usage:

Bonding material should be dry and without oils;

Light intensity should not be lower than 40mW/cm2 during curing;

If application of surface coating, light intensity should not be lower than 100mW/cm2.



Package:

250g/Bottle, 10 bottles/Box



Storage:

Store it in dry and shady places at the temperature of 10~26℃

Storage period is 12 months
