    White Color HT9661 Silicone Electrical Potting Compound for LED light shield

    Product Details:

    Place of Origin: China
    Brand Name: HUITIAN
    Certification: UL,SGS
    Model Number: 9661

    Payment & Shipping Terms:

    Minimum Order Quantity: 3000 pcs
    Price: Negotiation
    Packaging Details: 310ml/tube
    Delivery Time: 15 work days
    Payment Terms: L/C, T/T
    Get Best Price Contact Now

    Detail Information

    Color: White Component Of Basic Materials: Polysiloxane
    Density G/cm3: 1.4 Tack Free Time: 10 Mins
    Extrusion (25℃,0.5Mpa, ¢3mm) G/15s: 15 Hardness Shore A: 40
    Tensile Strength Mpa: 2.2 Work Temperature: -60~230
    High Light:

    potting electronic components

    ,

    potting compound for electronic components

    Product Description

    White Color HT9661 Silicone Electrical Potting Compound for LED light shield

    HT9661 bonding silicone for LED light shield

    HT9661 High Performance RTV Silicone Sealant

    FEATURES
    9661 high performance RTV-1 silicone adhesive/ sealant, designed for applications where non corrosive cure and durable adhesion to a variety of substrates is required.

    • One component adhesive/ sealant
    • Cures at room temperature when exposed to moisture in the air
    • Alkoxy cure system
    • Non sag, paste consistency
    • Good adhesion
    • Excellent dielectric properties
    • Stable and flexible form -60℃ to +200℃

    ● Properties before curing

    Item Typical Value Range
    Color White
    Component of Basic Materials Polysiloxane
    Density g/cm3 1.4 1.39~1.42
    Tack Free Time (25℃,50%RH)min 10 5~15

    Extrusion (25℃,0.5Mpa,

    ¢3mm) g/15s

    15 7~20

    ● Properties after curing

    Item Typical Value Range
    Curing Type Dealcoholization
    Hardness Shore A 40 40±5
    Tensile Strength Mpa 2.2 2.0~2.5
    Elongation at break( %) 450 350~500
    Shear Strength(Mpa) 1.8 1.5~2.3

    Volume Resistivity

    (Ω*cm)

    1.0×1015 ≥1.0×1015
    Dielectric Strength KV/mm 18 16~22
    Work Temperature(℃)   -60~230
    Flame retardant rating UL94 HB



    STORAGE
    When stored at 8-28℃ in the original unopened containers, Except for the 9661W5 (its shelf time is 6 months), 9661 series have a usable life of 9 months from the date of production.
    Special precautions must be taken to prevent moisture from contacting this material.
    Containers should be kept tightly close.



    APPLICATIONS

    • Sealing and bonding applications where non-corrosive cure is required.
    • Designed for outdoor conditions.
    • Applicable to adhesive/seal of PV module, automobile lampshade, lighting lamp.



    HOW TO USE

    • Surface preparation. For best adhesion, the substrate surface should be clean and dry prior to application. Some solvents can be used to clean the surface.
    • How to apply. Squeezing gel to the clean surface.
    • Curing. 9661 is cured at room temperature by reaction with moisture in the air. Curing process takes place from the outside to the inside .A 2~4mm thick coating will be take place until 24 hours after coating (25℃,55%RH). PACKING STANDARD

         9661W, White
         9661W4, 310 ml/cartridge, 25 cartridges/box
         9661W5, 2600ml/ cartridge, 4 cartridges/box
         9661W8, 20 kg/barrel, 2 barrels/set
         9661W9, 230kg/barrel, 2 barrel/set
         9661B, Black
         9661B4, 310 ml/cartridge, 25 cartridges/box
         9661B8, 20 kg/barrel, 2 barrels/set
         9661B9, 230kg/barrel, 2 barrel/set
         9661G, Gray
         9661G4, 310 ml/cartridge, 25 cartridges/box
         9661G8, 20 kg/barrel, 2 barrels/set
         9661G9, 230kg/barrel, 2 barrel/set

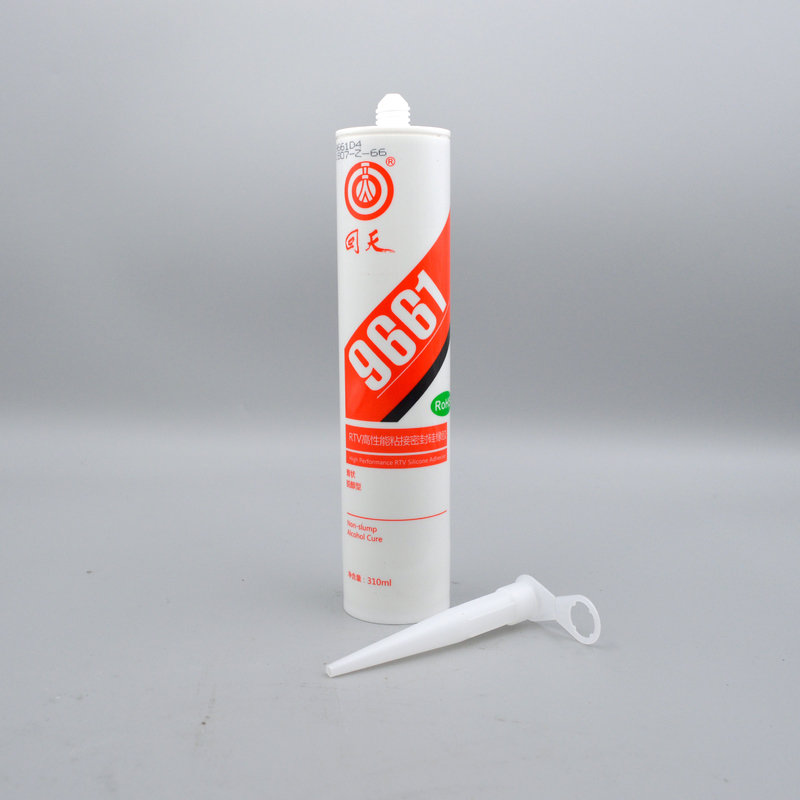

    White Color HT9661 Silicone Electrical Potting Compound for LED light shield 0
