Place of Origin: | China |
Brand Name: | HUITIAN |
Model Number: | 7277 |
Hard remove Thixotropic Anaerobic Red Thread Locker 7277, Loct. 277, used under the M36 thread locker

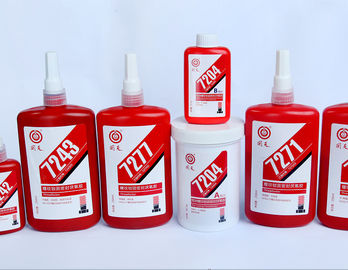

High Strength Red Thixotropic Anaerobic Thread Locker
The High Strength Red Thixotropic Anaerobic Thread Locker is mainly made of acrylate, a curing agent,
etc, which is high viscosity, high strength, and is hard to remove once cured.
Features:
1. One component
2. Color: red
3. High Viscosity
4. High strength
5. Excellent medium resistance
6. Cured when there is no air
Properties:
Item | Unit | Typical Value | Range |
Item No. | 7277 | ||
Color | red | ||
Composition of basic material | methacrylate | ||
Viscosity (Brookfield RVT 3# 20 rpm) |
mPa*s |
6,000~9,000 | |
Density | g/cm3 | 1.12 | |
Max Filling Gap | mm | 0.25 | |
Destabilizing Moment | N*m | 32 | |
Average Removing Torque | N*m | 31 | |
Initial Curing Time | min | ≤20 | |
Full Curing Time | hour | 24 | |
Flash Point | °C | >93 | |
Work Temperature | °C | -50~150 |
Applications:
For the locking and sealing of screw threads with Size M6 to M20
Specifications/packing:
There are mainly two packing ways as follows (other packing ways are available as per your requests)
1. 50ml/bottle, 10bottles /box, 8boxes/ctn.
2. 250ml/bottle, 10bottles /box, 2boxes/ctn.
Product name | Appearance |
Viscosity mPa·s GB/T2794 |
Density g/cm³ GB/U3354 |
Maximum filling gap mm |
Failure moment N·m GB/T18747.1 |
Average disassembly torque N·m GB/T18747.1 |
Initial curing time min | Full curing time h | Working temperature ℃ |
7242 | Blue |
800 -1,600 Thixotropy** |
1.0 | 0.13 | 12 | 5 | <20 | 24 | -50-150 |
7243 | Blue |
1,600 -1,900 Thixotropy** |
1.08 | 0.13 | 20 | 10 | <20 | 24 | -50-150 |
7262 | Red |
1,800 -2,400 Thixotropy** |
1.1 | 0.13 | 22 | 32 | <20 | 24 | -50-150 |
7263 | Red | 800-1,200* | 1.1 | 0.13 | 30 | 25 | <45 | 24 | -50-180 |
7271 | Red | 450~550 * | 1.1 | 0.13 | 25 | 29 | <20 | 24 | -50-150 |
7272 | Red |
4,000-10,000 Thixotropy*** |
1.11 | 0.3 | 23 | 25 | <60 | 24 | -50-230 |
7277 | Red | 6,000- 9,000*** | 1.12 | 0.25 | 32 | 31 | <20 | 24 | -50-150 |
7204 | Red |
7,000-15,000 Thixotropy**** |
1.1 | N/A | 22 | N/A | <5 | 72 | -50-150 |
7204D | Red |
9,000~15,000 Thixotropy |
1.1 | N/A | 25 | N/A | ≤5 | 72 | -50~150 |
7213 | Red, yellow, blue, orange, rose red, blue-green | 1,600~3,000 | 1.05 | N/A | 20 | N/A | ≤5 | 72 | -50~150 |
7215 | Rose red, yellow, blue-green | 1,600~3,000 | 1.05 | N/A | 20 | N/A | ≤5 | 72 | -50~150 |
Note: *Viscosity - measured at Brookfield RVF 20rpm: *2 # rotor **3 # rotor ***4 # rotor ****5 # rotor
We can also make:
1. Low strength & thixotropic thread locker adhesive
2. Middle strength & thixotropic thread locker adhesive
3. High strength & oil resistant thread locker adhesive
4. High strength & chemical resistant thread locker adhesive
5. High strength & thixotropic thread locker adhesive
6. High strength & high viscosity thread locker adhesive
7. High strength & middle viscosity thread locker adhesive
8. High-strength & high-temperature resistant thread locker adhesive
9. High strength & fast osmotic thread locker adhesive
Our Advantages:
1. Listed company in China (stock code: 30041)
2. Famous Trademark of China
3. Top 5 in adhesive industry
4. Fast Delivery
5. OEM services/small orders are welcome
