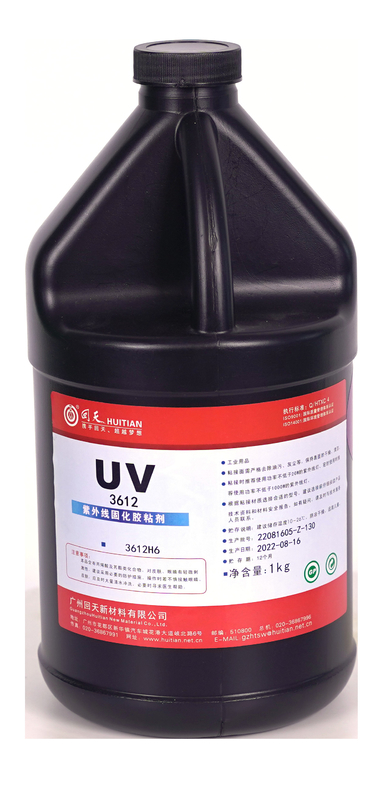

3612 UV Conformal Coating Coating Protection Of PCB Circuits And Components High-Performance PCB Protection for NEVs, Smart Home, and Outdoor Energy

3612 UV Conformal Coating Coating Protection Of PCB Circuits And Components High-Performance PCB Protection for NEVs, Smart Home, and Outdoor Energy

Product Details:

Place of Origin:	China
Brand Name:	Huitian
Certification:	RoHS IPC-CC-830C
Model Number:	3612

Detail Information

Place of Origin:

China

Brand Name:

Huitian

Certification:

RoHS IPC-CC-830C

Model Number:

3612

Appearance:

Amber Liquid

Viscosity:

500-900 MPa.s

Density:

1..0-1.1 G/cm³

Tack-free Energy:

1,500 MJ/ C㎡

Hardness:

50~65 Shore D

Dielectric Constant 1 MHz:

3.2

Volume Resistivity:

1.0×10*14 Ω·cm

Highlight:

Silicone Potting Compound , potting compound for electronic components

Trading Information

Minimum Order Quantity:

12kg

Price:

Negotiation

Packaging Details:

1kg/barrel

Delivery Time:

5-8 days

Payment Terms:

L/C, T/T

Supply Ability:

100T/month

Product Description

3612(3612H6) TDS-EN.pdf
Product Description
● One-component UV conformal coating
● Amber transparent liquid
● Fluorescent effect

Applications:

The 3612 UV Conformal Coating is widely used in the protection of PCB (Printed Circuit Board) circuits and components. It is ideal for applications in industries such as:

● New Energy Vehicles (NEVs)

● Smart Home Appliances

● Inverters

● Lighting Controllers

● Lithium Battery Control Panels

● Intelligent Cabin Systems

● Outdoor Energy Storage

● Communication Control Systems

Product Features
● Faster Curing Rate: Utilizes UV + moisture cure technology for rapid curing.
● Lower Curing Energy: Reduces energy consumption during the curing process.
● Higher Board Adhesion: Ensures excellent adhesion to PCBs, enhancing the durability of the coating.
● Better Compatibility: Offers excellent compatibility with various materials and processes.
● Greater Weather & Aging Resistance: Provides superior aging resistance, making it suitable for long-term use in harsh environments.

Direction for use
The surface should be dry and free of grease.
Recommended dry film thickness: 85~150 μm.
According to the internal laboratory test data of Huitian, a UV mercury lamp is best for 3612.
The recommended curing energy is as follows:

	Curing energy/mJ/cm²
	UVA	UVB	UVC
Min	1200	600	400
Max	2500	1500	1000

Technical parameters

Reference standard	Item	Unit	Value
UV curing physical property indexes (1000W UV mercury lamp curing)
Q/HTXC 4	Appearance	--	Amber liquid
GB/T2794	Viscosity (25℃)	mPa.s	500~900
GB/T13354	Density	g/cm³	1.0~1.1
Q/HTXC 4	Tack-free energy	mJ/ cm²	1500
GB/T 2411	Hardness	Shore D	50~65
GB/T 9286	Adhesion	--	5B
GB/T 1693	Dielectric constant 1 MHz	--	3.2
GB/T 1692	Volume resistivity	Ω.cm	＞1.0×10*14

Packing Specification
Order code: 3612H6, 1kg/barrel, 12 barrels/carton

Storage
Store at 10-26°C in a cool and dry place. Shelf life is 12 months.
