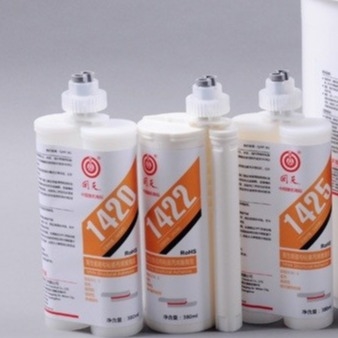

• 1420 Acrylic Acid Industrial Adhesive Glue Structural Bonding
1420 Acrylic Acid Industrial Adhesive Glue Structural Bonding

1420 Acrylic Acid Industrial Adhesive Glue Structural Bonding

Product Details:

Place of Origin: China
Brand Name: Huitian
Certification: SGS
Model Number: 1420

Payment & Shipping Terms:

Minimum Order Quantity: 100KG
Price: Negotiation
Packaging Details: 50ml/double tube, 380ml/double tube
Supply Ability: 2000KG/Month
Get Best Price Contact Now

Detail Information

Color: White(A)/Blue(B) Composition: Acrylic Acid
Density: 0.96g/ml(A), 1.13g/ml(B) Viscosity: 160000mPa.s(A)/140000mPa.s(B)
Weight Ratio: 10:1 Curing Time: 24h
Tensile Strength: 20Mpa Initial Curing Time: 30min
High Light:

Structural Bonding Acrylic Acid Adhesive


1420 Industrial Adhesive Glue


20Mpa Industrial Adhesive Glue

Product Description

1420 High performance structural bonding acrylic adhesive

Two component, blue, rigid, super fast curing methyl acrylic acid adhesive.Suitable for plastic, metal and composite adhesive, high viscosity, high thixotropic, not vertical flow, Mixing ratio 10:1, Operation time 3-4 minutes, time  6-10 minutes;strength:75% . Especially suitable for bonding of composite materials, without surface treatment can reach the highest strength, good toughness, good shock resistance, fatigue resistance. Meet the demand of mass production line.


Typical Applications

Transport vehicles, notebook computer, mobile phone and other products such as structural adhesive bonding electrons.

Bonding material: ABS, glass steel, polyester (DCPD modified) polystyrene, polyethylene ester, PVC, polyurethane, coating

Carbon steel, aluminum and stainless steel recommended HuiTian primer 1020.


Item Unit Typical Value
Color Component A   White
Component B   Blue
Component of Basic Materials   acrylic acid
Density Component A g/cm3 0.96
Component B 1.13
Viscosity Component A mPa*s 160000
Component B 140000
After Mixed
Mix Ratio by weight (A:B)   10:1
Handing Curing Time Min 25
Initial Curing Time Hour 0.5
Full Curing Time Hour 24
Tensile Strength After Curing Mpa 20
Elongation at break %
Hardness Shore A
Volume Resistivity Ω*cm
Dielectric Strength KV/mm
Flame Retardant Rating   UL94 V-1
Work Temperature -55~121



Medium resistance

Resistance PH 3-10 acid, hydrocarbons, salt solution. Not resistant to polar solvent, acid and alkali.

How to use

Surface treatment: Remove dust, water, oil from surface; maintain the adhesive surface clean, carbon steel, aluminum and stainless steel recommended Huitian primer to reach 1020 best bonding results.
