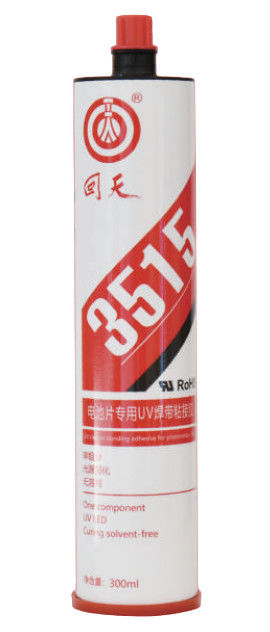

3515 UV Ribbon Bonding Adhesive For Photovoltaic Cells Bonding Instead Of Welding

3515 UV Ribbon Bonding Adhesive For Photovoltaic Cells Bonding Instead Of Welding

3515 UV Ribbon Bonding Adhesive For Photovoltaic Cells Bonding Instead Of Welding

Product Details:
Place of Origin: Shanghai of China
Brand Name: Huitan
Certification: RoHS
Model Number: 3515
Detail Information
Place of Origin:
Shanghai of China
Brand Name:
Huitan
Certification:
RoHS
Model Number:
3515
Type:
UV Adhesive
Appearance:
Colorless Transparent Paste
Density:
1.09 G/cm³
Viscosity:
8,500 MPa·s
Thixotropy:
4
Hardness:
65 Shore D
Tensile Strength:
25 Mpa
Shear Strength:
0.35 Mpa
Elongation At Break:
40%
Volume Resistivity:
5.0×10^14 Ω·cm
2h@160℃ Yellowing Index:
1
2h@200℃ Yellowing Index:
4
High Light:
UV Ribbon Bonding Adhesive , Photovoltaic Cells Ribbon Bonding Adhesive , Transparent UV Bonding Adhesive
Trading Information
Minimum Order Quantity:
5kg
Price:
Negotiation
Packaging Details:
300 cc/cartridge
Delivery Time:
7-15days
Payment Terms:
T/T, L/C
Supply Ability:
1T/Month
Product Description

3515 TDS-EN.pdf

3515 is a one-component, solvent-free, UV-curable fixing glue, its chemical composition is modified polyurethane acrylic resin, featuring low-odor, environmentally friendly, medium viscosity, and high thixotropy, shape retention. Can have excellent yellowing resistance, high strength, and excellent insulation.



Product features

1) 365nm UV LED light source curing, fast curing

2) Solvent-free, economical and environmentally-friendly
3) Medium viscosity, high thixotropy, excellent shape retention
4) Excellent yellowing resistance, high strength, high adhesion





Applications

Suitable for electronic components fixing, wire soldering reinforcement, connector bonding, and fixing

Suitable for bonding of welding strip and solar cell



Packaging

300 cc/cartridge
