PV331S Ultra High Water Resistant Backsheet HJT Requirements Encapsulation Of Crystalline Silicon Photovoltaic Modules

PV331S Ultra High Water Resistant Backsheet HJT Requirements Encapsulation Of Crystalline Silicon Photovoltaic Modules

PV331S Ultra High Water Resistant Backsheet HJT Requirements Encapsulation Of Crystalline Silicon Photovoltaic Modules
  • PV331S Ultra High Water Resistant Backsheet HJT Requirements Encapsulation Of Crystalline Silicon Photovoltaic Modules
  • PV331S Ultra High Water Resistant Backsheet HJT Requirements Encapsulation Of Crystalline Silicon Photovoltaic Modules
  • PV331S Ultra High Water Resistant Backsheet HJT Requirements Encapsulation Of Crystalline Silicon Photovoltaic Modules
  • PV331S Ultra High Water Resistant Backsheet HJT Requirements Encapsulation Of Crystalline Silicon Photovoltaic Modules

PV331S Ultra High Water Resistant Backsheet HJT Requirements Encapsulation Of Crystalline Silicon Photovoltaic Modules

Product Details:
Place of Origin: China
Brand Name: Huitan
Certification: TUV
Model Number: PV331S
Detail Information
Place of Origin:
China
Brand Name:
Huitan
Certification:
TUV
Model Number:
PV331S
Type:
Water-resistant Backsheet
Color:
White/Black
Thickness:
330μm
Water-resistance Middle Layer:
Aluminum Foil
Tensile Strength MD:
≥110Mpa
Tensile Strength TD:
≥100Mpa
Elongation At Break MD:
≥100%
Elongation At Break TD:
≥90%
Heat Shrinkage Rate MD:
≤1.5%
Heat Shrinkage Rate TD:
≤1.0%
Moisture Vapor Transmission Rate:
≤0.1g/(㎡·d)
Volume Resistivity:
1.0×10^13 Ω·cm
Breakdown Voltage:
≥16KV
EVA Lamination Peel Strength:
≥60N/cm
Aging Test DH1000:
No Cracking, Delamination, Blistering, Chalking; Yellowing △b <3
Highlight:
Water Resistant PV Backsheet Material , Ultra High Water Resistant Backsheet , Crystalline Silicon Photovoltaic Module Backsheet
Trading Information
Minimum Order Quantity:
1356㎡
Price:
Negotiation
Packaging Details:
1130mm (width is customizable) 200m coil, 3x3 per pallet; 600m
Delivery Time:
3-7days
Payment Terms:
T/T, L/C
Supply Ability:
10M ㎡/Month
Product Description

PV331S TDS-EN.pdf

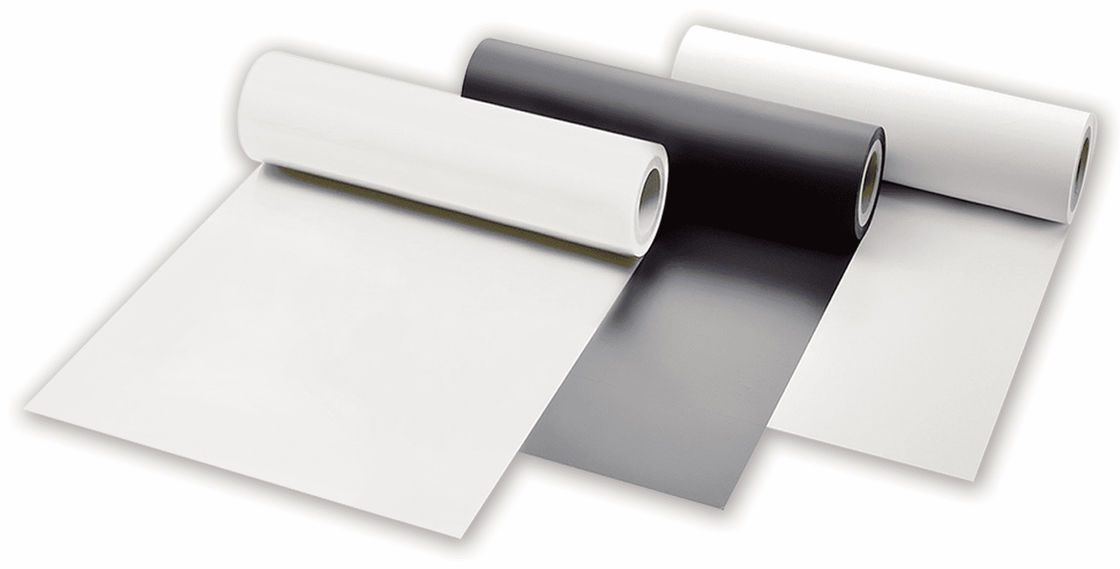

PV331S is a Huitian self-developed backsheet made of different thicknesses of polyvinylidene fluoride film (PVDF film) as weather resistant layer, enhanced high resistance biaxially oriented transparent polyester film (PET) as a support layer, and fluorocarbon coating as EVA bonding layer, which is laminated by adhesive, with black and white color options.



Product Features

1) Ultra-high water vapor resistance <0.3g/㎡·day

2) Double-sided fluorine coating design, high heat resistance, high reliability

3) Transparent product, after UV300kWh/㎡, DH2000h, light transmission attenuation <5%







Applications

Suitable for PV back encapsulation material for photovoltaic modules



Packaging
Coiled Packing is available. Outer packing is carton; inner packing is sealed. There is information such as product name, model, batch number and batch barcode, production date, and certification mark. directions for use, and the number of joints on the carton.
Coil specification: 1130mm (width is customizable)

Pallet specification: 200m coil, 3x3 per pallet; 600m coil is also available.



PV331S Ultra High Water Resistant Backsheet HJT Requirements Encapsulation Of Crystalline Silicon Photovoltaic Modules 0
