PV308C-T TDS-EN.pdf
PV308C-T series are Huitian self-developed backsheets made of various high weather-resistant fluorocarbon coatings as the air layer, EVA adhesive layer, and high resistance biaxially oriented polyester film (PET) as the middle layer which are coated twice, with pure white, pure black, black inside and white outside three color options.
Product Features
1) Double-sided transparent fluorine coating, high UV resistance, anti-yellowing, high light transmittance

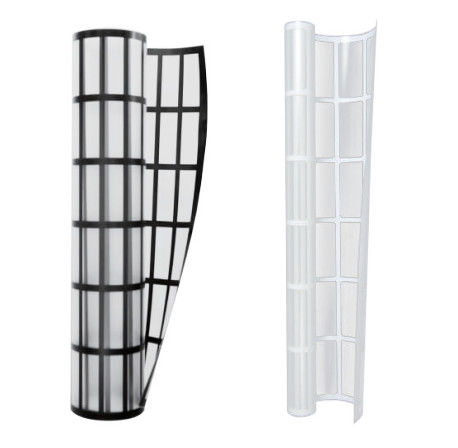

2) Grid design, white grid reflectivity > 80%, higher power generation gain
3) Aesthetic design, black transparent backsheet
4) After UV300kWh/㎡, DH2000h,light transmission attenuation <5%
5) All the coatings are self-developed, more cost-effective
Applications
Suitable for PV back encapsulation material for photovoltaic modules
Packaging
Coiled Packing is available. Outer packing is carton; inner packing is sealed. There is information such as product name, model, batch number and batch barcode, production date, and certification mark. directions for use, and the number of joints on the carton.
Coil specification: 985mm (width is customizable)
Pallet specification: 200m coil, 3x3 per pallet; 600m coil is also available.
