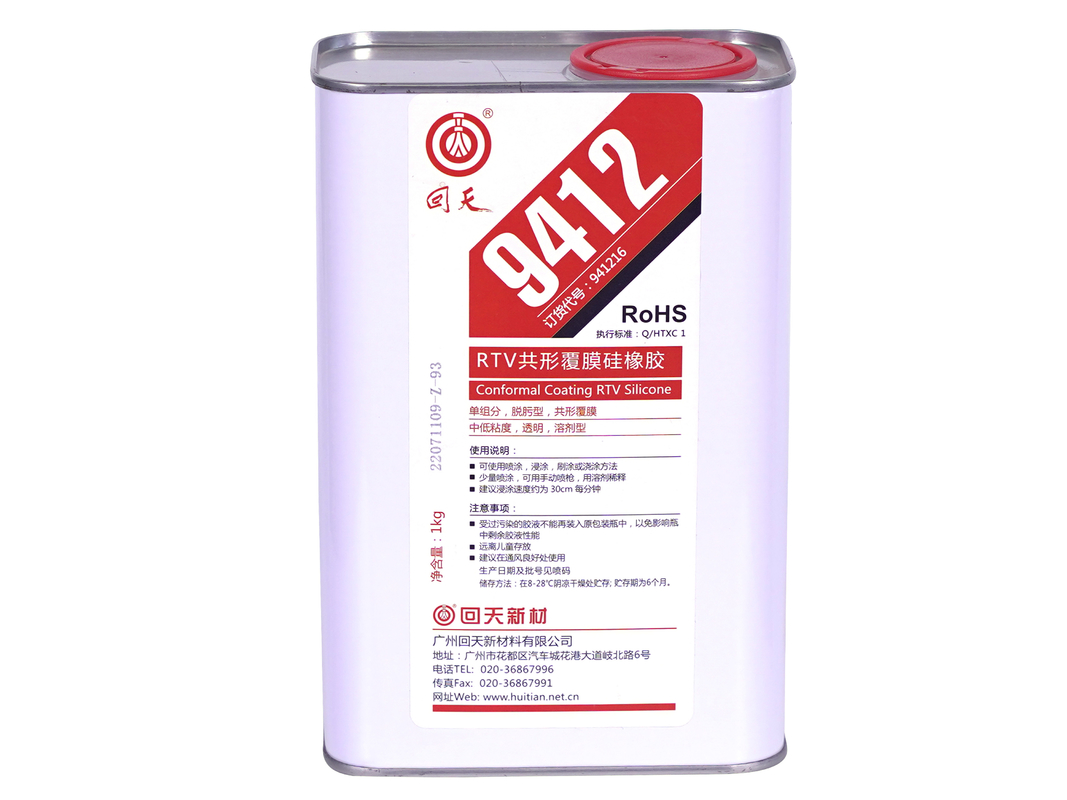

9412 Conformal Coating Silicone Rubber Suitable For Surface Moisture-Proof Coating Of Circuit Boards

9412 Conformal Coating Silicone Rubber Suitable For Surface Moisture-Proof Coating Of Circuit Boards

9412 Conformal Coating Silicone Rubber Suitable For Surface Moisture-Proof Coating Of Circuit Boards

Product Details:
Place of Origin: China
Brand Name: HUITIAN
Certification: RoHS
Model Number: 9412
Detail Information
Place of Origin:
China
Brand Name:
HUITIAN
Certification:
RoHS
Model Number:
9412
Appearance:
Translucent. Semi-fluid
Viscosity:
800-1,500 MPa·s
Density:
0.95-1.05 G/c㎡
Solid Content:
43%
Tack-free Time:
≤50 Min
Hardness:
15-25 Shore A
Tensile Strength:
≥1.0 MPa
Elongation At Break:
≥200 %
Dielectric Strength:
≥16 KV/mm
Volume Resistivity:
1.0×10*14 Ω·cm
Trading Information
Minimum Order Quantity:
100kg
Price:
Negotiation
Packaging Details:
5L/barrel
Delivery Time:
3-7days
Payment Terms:
L/C, T/T
Supply Ability:
100T/Month
Product Description

9412 (941216) TDS-EN.pdf

Product Description

● One-component room temperaturevulcanizing silicone rubber

● ​Translucent, semi-fluid

●​ Moisture curing, glue layer is elastomericafter curing



Product Features

●​ Neutral curing

●​ Environmentally friendly solvent,benzene-free
●​ Outstanding adhesion to various substrates

●​ Excellent insulating property

●​ Excellent weatherability

●​ Maintains stable and flexible in the operating temperature range of -40°C to 180°C



Typical Applications

Suitable for surface moisture-proof coating ofcircuit boards, insulation and moisture-proof treatment of components, shallow encapsulation of electrical modules



Directions for use

During storage, a small amount of cured material or oil may appear at the mouth of the tube, which can be removed for normal use and won’t affect the performance of the product

Clean-up: Clean the surface and remove rust, dust, oil, etc.

Gluing: Squeeze the glue onto the cleaned surface.

Curing: Place the glued component in the air. The formation of the skin will be followed by the curing process from the surface to the inside. After curing at 25°C and 55% relative humidity for 24 hours, the curing depth of the glue is 2~4mm, and it will increases gradually with time.



Packing Specification

Order code: 941201 1kg/barrel, 12 barrels/carton



Storage

Store at 8-28°C in a cool and dry place. Shelf life is 6 months
