Power Battery Adhesive
>

8324-V Foam the structural needs of power battery Gentle compression curve Great resistance to compression set

8324-V Foam the structural needs of power battery Gentle compression curve Great resistance to compression set

8324-V Foam the structural needs of power battery Gentle compression curve Great resistance to compression set

Product Details:
Place of Origin: China
Brand Name: HUITIAN
Certification: RoHS
Model Number: 8324-V/8320-V
Detail Information
Place of Origin:
China
Brand Name:
HUITIAN
Certification:
RoHS
Model Number:
8324-V/8320-V
Thickness:
0.7, 1.0, 1.2, 1.5, 2.0, 2.5, 3.0 Mm
Density:
240±24 Kg/m³
Hardness:
38 Shore 00
Compression Force Deflection:
48 KPa@50%
Compression Set:
<5 % (@70%), @70°C For 72h
Thermal Conductivity:
0.065 W/(m·K)
Trading Information
Minimum Order Quantity:
100kg
Price:
Negotiated
Packaging Details:
Customized
Delivery Time:
5-8 days
Payment Terms:
L/C, T/T
Supply Ability:
5000kg/Month
Product Description

Huitian 8324-V/8320-V series foam is specially designed and developed for the structural needs of power batteries. Its gentle compression curve and excellent compression rebound performance guarantee ample buffering capability for new energy batteries, effectively absorbing and mitigating shocks during the battery charging and discharging process. The low-density foam offers a wide compression range, allowing for a maximum compression ratio of up to 80%. Additionally, its exceptional compression and permanent deformation ensure the foam's outstanding durability. Huitian 8324-V/8320-V series foam maintains stable compression rebound performance and compression permanent deformation performance even in long-term exposure to hot and high-humidity environments. It can sustain over 90% of its compression performance after millions of compressions, ensuring the durability of batteries in various harsh conditions.



Product Features

  • Gentle compression curve
  • Excellent resistance to compression set
  • Uniform foaming, fast rebound
  • Excellent aging resistance
  • Outstanding cycling performance
  • Great low-temperature resistance
  • High design flexibility



Typical Application

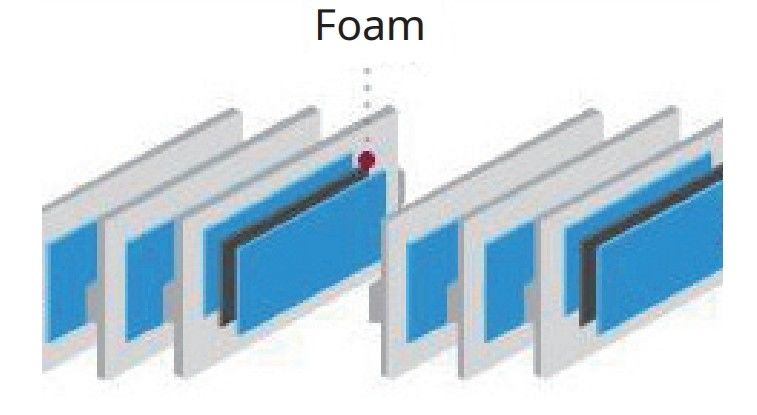

  • Buffer between soft pack battery cells
  • Buffer for battery pack housing
  • Buffer for battery liquid cooling plate
  • Gap filler in battery packs



Property Test method 8324-V 8320-V
Thickness, mm - 0.7, 1.0, 1.2, 1.5 2.0, 2.5, 3.0, 4.0
Density, kg/m³ ASTM D3574 240± 24 200 ± 20
Hardness, shore 00 ASTM D2240 38 32
Compression Force Deflection kPa@25% ASTM D3574 25 18
Compression Force Deflection kPa@50% ASTM D3574 48 36
Compression set % ASTM D3574 <3 (at 70%), at 23℃ for 7 days <5 (at 70%), at 70℃ for 72h
Thermal Conductivity ASTM D5470 0.065 0.07
Surface resistivity, Ω ASTM D257 3 × 10^12 4 × 10^12
Volume resistivity, Ω·cm ASTM D257 5 × 10^14 5.5 × 10^14
Dielectric strength, volts/mil ASTM 149 180 150
Dielectric constant ASTM 150 1.9 1.7
Flame resistance UL94-HB HBF HBF
