0114 Grey Silicone Thermal Conductive Grease 2.6W/M·K For Thermal Conductivity of Electronic Components

0114 Grey Silicone Thermal Conductive Grease 2.6W/M·K For Thermal Conductivity of Electronic Components

0114 Grey Silicone Thermal Conductive Grease 2.6W/M·K For Thermal Conductivity of Electronic Components
  • 0114 Grey Silicone Thermal Conductive Grease 2.6W/M·K For Thermal Conductivity of Electronic Components
  • 0114 Grey Silicone Thermal Conductive Grease 2.6W/M·K For Thermal Conductivity of Electronic Components
  • 0114 Grey Silicone Thermal Conductive Grease 2.6W/M·K For Thermal Conductivity of Electronic Components

0114 Grey Silicone Thermal Conductive Grease 2.6W/M·K For Thermal Conductivity of Electronic Components

Product Details:
Place of Origin: CHINA
Brand Name: HUITIAN
Certification: SGS
Model Number: 0114
Detail Information
Place of Origin:
CHINA
Brand Name:
HUITIAN
Certification:
SGS
Model Number:
0114
Physical Form:
Paste
Color:
Grey
Main Component:
Polysiloxane
Density:
2.5g/cm³
Volatility(200℃,24h):
0.2%
Thermal Conductivity:
2.6 W/(m•K)
Working Temperature:
-40-150
Highlight:
high performance thermal compound , silicone thermal grease
Trading Information
Minimum Order Quantity:
60kg
Price:
Negotiation
Packaging Details:
1kg/bucket,12buckets/carton
Delivery Time:
5-8 days
Payment Terms:
L/C, T/T
Supply Ability:
1000KG MONTH
Product Description

0114 TDS-EN.pdf

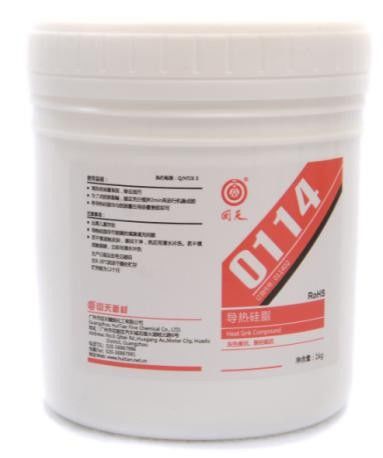

0114 is a one-component Silicone Thermal Conductive Grease suitable for gap filler and reducing the temperature of electronic components.



Product Features:

One-component, grey;
Physical form: paste;
Wide working temperature range;
Nontoxic, non-corrosive to PCB and metal;
Eco-friendly, odourless;
Its stability and thermal conductivity kept even at the temperature of 150°C, also can be manually glued
Maintain dry and flowing at high temperature;
Thermal conductivity: 2.6W/m·K



Main Applications:

Widely used for the thermal conductivity of electronic components including the filling of gaps between CPU, BGA, LED, power source, high-power audion, thyristor, and basic materials such as copper and aluminum to reduce the temperature of electronic components.





Item Unit Typical Value
Item No.   0114
Physical Form   paste
Color   grey
Main Component   polysiloxane
Density g/cm3 2.5
Penetration Degree 1/10cm 290
Volatility(200℃,24h) % 0.2
Volume Resistivity Ω*cm 1.0×1015
Dielectric Strength KV/mm 22
Breakdown Voltage KV/mm 18
Surface Resistance Ω 1.6×1012
0.1mm Thermal Resistance m2K/W 0.00007
Heat Conductivity Coefficient W/(m·K) 2.6





Packing:

1kg/bucket, 12buckets/carton



Storage:

Store it in dry and cool places at the temperature of 0~35℃

Shelf life is 12 months




0114 Grey Silicone Thermal Conductive Grease 2.6W/M·K For Thermal Conductivity of Electronic Components 0

0114 Grey Silicone Thermal Conductive Grease 2.6W/M·K For Thermal Conductivity of Electronic Components 1
