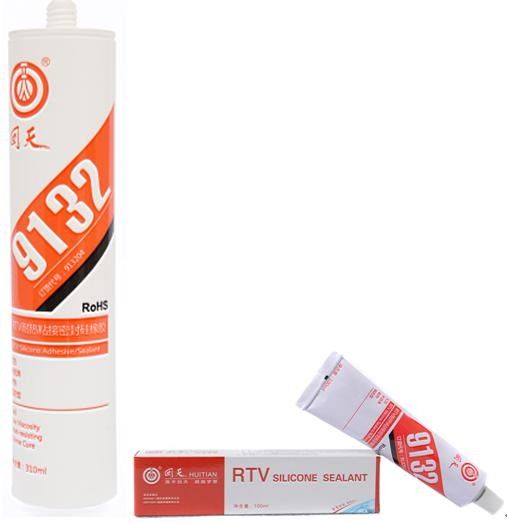

Silicone Potting Compound 9132 for Steam iron , high temperature potting compound

Silicone Potting Compound 9132 for Steam iron , high temperature potting compound

Silicone Potting Compound 9132 for Steam iron , high temperature potting compound

Product Details:
Place of Origin: CHINA
Brand Name: HUITIAN
Certification: SGS
Model Number: 9132
Detail Information
Place of Origin:
CHINA
Brand Name:
HUITIAN
Certification:
SGS
Model Number:
9132
Color:
RED
Component Of Basic Materials:
Polysiloxane
Density:
1.25
Tack Free Time (25℃,50%RH):
10 MINS
Curing Type:
Deoximation
Hardness:
Shore A 35
Tensile Strength:
1.5MPA
Elongation At Break:
200%
Work Temperature:
-60-260
Highlight:
Silicone Potting Compound , potting compound for electronic components
Trading Information
Minimum Order Quantity:
1000pcs
Price:
Negotiation
Packaging Details:
310ml/catridge,25 catridges/carton
Supply Ability:
100000PCS
Product Description

High Performance RTV Silicone Sealant 9132 for Steam iron, high temperature air filters



● Product Features:

Ø 9132 (HT903) RTV heat-resistant adhesive sealing silicone is single component, heat resistant, semi flowing, red, deoximation RTV silicone rubber.

Ø Smell small, has excellent heat resistance, in the -60 to 260 DEG C for a long time to maintain flexibility and stability; easy leveling, not penetrate into the small gaps, excellent sealing glue; after curing is elastic body, has the anti thermal change, excellent resistance to stress change performance; in full compliance with the requirements of the EU ROHS directive.



Main Applications:

Ø Steam iron, high temperature air filters, high temperature oven, high temperature sealing pipe and other industrial products production bonding.



Specifications & Packages

Ø 310ml/cartridge, 25cartridges/carton.



● How to Use

Ø Keep the object surfaces clean without rusts, dusts and oil.

Ø Dispense the sealants to object surfaces.

Ø Put the objects in the air for 24 hours in the condition of room temperature & 55%RH to reach a cure depth of 2~4mm the longer, the deeper.

Ø The outlet of unspent adhesive should be sealed in time, clean the crusts on the outlet for another use within a short time, the performance of adhesive won’t be affected.



● Storage:

Ø Keep the sealant away from children.

Ø Use it in ventilated places

Ø In case of contact with skins, wipe and then flush with clear water.

Ø In case of contact with eyes, flush with clear water immediately and go to hospital for checking.

Ø Store it in dry and shady places at the temperature of 8~28℃

Ø Storage life is 12 months from the date of manufacture.



● Technical Data:

Item Unit Typical Value Range
Item No.   9132
Color   Red
Component of Basic Materials   Polysiloxane
Density g/cm3 1.25 1.20~1.30
Tack Free Time (25℃,50%RH) min 10 6~20
Curing Type   Deoximation
Hardness Shore A 35 35±5
Tensile Strength Mpa 1.5 ≥1.0
Elongation at break % 200 ≥200
Volume Resistivity Ω*cm 1.0×1015 ≥1.0×1015
Dielectric Strength KV/mm 17 ≥15
Work Temperature   -60~260
