Electronic Adhesive
>

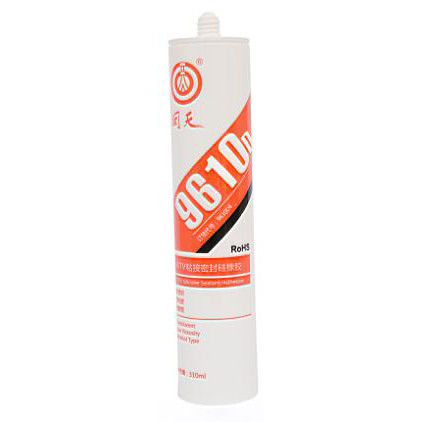

Semi transparent Polysiloxane Electrical Potting Compound , non corrosive silicone sealant

Semi transparent Polysiloxane Electrical Potting Compound , non corrosive silicone sealant

Semi transparent Polysiloxane Electrical Potting Compound , non corrosive silicone sealant

Product Details:
Place of Origin: CHINA
Brand Name: HUITIAN
Certification: SGS
Model Number: 9610
Detail Information
Place of Origin:
CHINA
Brand Name:
HUITIAN
Certification:
SGS
Model Number:
9610
Color:
Semitransparent
Component Of Basic Materials:
Polysiloxane
Density:
1.05
Tack Free Time (25℃,50%RH):
5 MINS
Curing Type:
Dealcoholization
Hardness:
Shore A 30
Tensile Strength:
1.3 MPA
Elongation At Break:
300%
Shear Strength:
1.8MPA
Work Temperature:
-60-180
Highlight:
Silicone Potting Compound , potting compound for electronic components
Trading Information
Minimum Order Quantity:
1500PCS
Price:
Negotiation
Packaging Details:
310ml/cartridge,25 cartridges/carton
Supply Ability:
50000PCS
Product Description

High Performance RTV Silicone Sealant 9610 for instead of the traditional sealing ring



Product Features:

Ø Single component, room temperature curing, dealcoholization type.

Ø Neutral curing, becoming elastomer after curing.

Ø Alcohols released after curing, no irritant smell generated, non-corrosive to carbonate ester & copper materials.

Ø High thermal distortion and stress strain resistance.

Ø High temperature and humidity resistant.

Ø High performance on insulation, damp Proofing, vibration resistance, corona resistance, electricleakage resistance and chemical resistance.



● Main Applications:

Ø Small household appliances such as sealing electric kettle, Coffee kettle body and a heating plate, a pot cover, instead of the traditional sealing ring; the other should be sealed, fixed industrial parts assembly.



Specifications & Packages

Ø 310ml/cartridge, 25cartridges/carton.



● How to Use

Ø Keep the object surfaces clean without rusts, dusts and oil.

Ø Dispense the sealants to object surfaces.

Ø Put the objects in the air for 24 hours in the condition of room temperature & 55%RH to reach a cure depth of 2~4mm the longer, the deeper.

Ø The outlet of unspent adhesive should be sealed in time, clean the crusts on the outlet for another use within a short time, the performance of adhesive won’t be affected.



● Storage:

Ø Keep the sealant away from children.

Ø Use it in ventilated places

Ø In case of contact with skins, wipe and then flush with clear water.

Ø In case of contact with eyes, flush with clear water immediately and go to hospital for checking.

Ø Store it in dry and shady places at the temperature of 8~28℃

Ø Storage life is 6 months from the date of manufacture.



● Technical Data:

Item Unit Typical Value Range
Item No.   9610
Color   Semitransparent
Component of Basic Materials   Polysiloxane
Density g/cm3 1.05 1.00~1.08
Tack Free Time (25℃,50%RH) min 5 2~10
Curing Type   Dealcoholization
Hardness Shore A 30 30±5
Tensile Strength Mpa 1.3 1.1~1.5
Elongation at break % 300 ≥300
Shear Strength Mpa 1.8 1.5~2.3
Volume Resistivity Ω*cm 1.0×1015 ≥1.0×1015
Dielectric Strength KV/mm 18 16~22
Work Temperature   -60~180
