Electrical Potting Compound For sealing and bonding LCD decorative lighting and LED lights

Electrical Potting Compound For sealing and bonding LCD decorative lighting and LED lights

Electrical Potting Compound For sealing and bonding LCD decorative lighting and LED lights

Product Details:
Place of Origin: CHINA
Brand Name: HUITIAN
Certification: SGS
Model Number: 9310
Detail Information
Place of Origin:
CHINA
Brand Name:
HUITIAN
Certification:
SGS
Model Number:
9310
Color:
Semitransparent
Component Of Basic Materials:
Polysiloxane
Density:
1.0
Tack Free Time (25℃,50%RH):
5 MINS
Curing Type:
Dealcoholization
Hardness:
Shore A 25
Tensile Strength:
0.4 MPA
Elongation At Break:
300%
Shear Strength:
1.8 MPA
Work Temperature:
-40-150
High Light:
Silicone Potting Compound , potting electronic components
Trading Information
Minimum Order Quantity:
500KG
Price:
Negotiation
Packaging Details:
310ml/cartridge,25 cartridges/carton
Supply Ability:
10000KG MONTH
Product Description

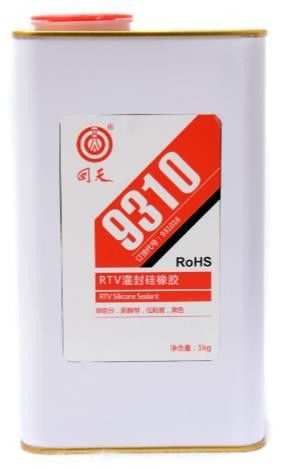

High Performance RTV Silicone Sealant 9310 Ø For the sealing and bonding of LCD decorative lighting and LED lights.



● Product Features:

Ø Single component, room temperature curing, dealcoholization type.

Ø Neutral curing, becoming elastomer after curing.

Ø Alcohols released after curing, no irritant smell generated, non-corrosive to carbonate ester & copper materials.

Ø High thermal distortion and stress strain resistance.

Ø High temperature and humidity resistant.

Ø High performance on insulation, damp Proofing, vibration resistance, corona resistance, electricleakage resistance and chemical resistance.



● Main Applications:

Ø For the sealing and bonding of LCD decorative lighting and LED lights.

Ø For the bonding and sealing solar photovoltaic module.

Ø Suitable for outside environments.



Specifications & Packages

Ø 310ml/cartridge, 25cartridges/carton.



● How to Use

Ø Keep the object surfaces clean without rusts, dusts and oil.

Ø Dispense the sealants to object surfaces.

Ø Put the objects in the air for 24 hours in the condition of room temperature & 55%RH to reach a cure depth of 2~4mm the longer, the deeper.

Ø The outlet of unspent adhesive should be sealed in time, clean the crusts on the outlet for another use within a short time, the performance of adhesive won’t be affected.



● Storage:

Ø Keep the sealant away from children.

Ø Use it in ventilated places

Ø In case of contact with skins, wipe and then flush with clear water.

Ø In case of contact with eyes, flush with clear water immediately and go to hospital for checking.

Ø Store it in dry and shady places at the temperature of 8~28℃

          Storage life is 6 months from the date of manufacture



● Technical Data:

Item Unit Typical Value Range
Item No.   9310
Color   Semitransparent
Component of Basic Materials   Polysiloxane
Density g/cm3 1.0 0.95~1.05
Tack Free Time (25℃,50%RH) min 5 5~10
Curing Type   Dealcoholization
Hardness Shore A 25 25±5
Tensile Strength Mpa 0.4 ≥0.4
Elongation at break % 300 ≥300
Shear Strength Mpa 1.8 1.5~2.3
Volume Resistivity Ω*cm 3.0×1015 ≥1.0×1015
Dielectric Strength KV/mm 22 ≥20
Work Temperature   -40~150
