Automotive adhesives and sealants 4060F RTV Silicone Sealant for Auto Lamp assembly

Automotive adhesives and sealants 4060F RTV Silicone Sealant for Auto Lamp assembly

Automotive adhesives and sealants 4060F RTV Silicone Sealant for Auto Lamp assembly

Product Details:
Place of Origin: CHINA
Brand Name: HUITIAN
Certification: SGS
Model Number: 4060F
Detail Information
Place of Origin:
CHINA
Brand Name:
HUITIAN
Certification:
SGS
Model Number:
4060F
Color:
B WHITE
Component Of Basic Materials:
Polysiloxane
Density:
B 1.01
Viscosity:
B 20000
Mix Ratio By Weight (A:B):
10:1
Handing Curing Time:
3 MINS
Initial Curing Time:
20 MINS
Full Curing Time:
24 HOUR
Tensile Strength:
1.5 MPA
Elongation At Break:
250%
Hardness:
Shore A 39
Work Temperature:
-60-200
Highlight:
Silicone Potting Compound , potting compound for electronic components
Trading Information
Minimum Order Quantity:
200kg
Price:
Negotiation
Packaging Details:
A:25kg/bucket B:18kg/bucket;A:230kg/bucket B:18kg/bucket
Supply Ability:
10000 KG MONTH
Product Description

4060F RTV Silicone Sealant for Auto Lamp assembly



Product Features:

Ø 4060F (HT-360) RTV condensation type silicone adhesive sealing is a two-component, paste, black (gray) color, RTV silicone rubber.

Ø The room temperature fast curing, the release of ethanol molecules, no corrosion to the materials.

Ø With the two-component glue machine use, mature supporting scheme.

Ø After curing with excellent flexibility, resistance to alternating hot and cold resistant performance, aging resistance and electrical insulation properties, excellent moisture, earthquake resistance, corona resistance, anti leakage performance.

Ø This product does not need to use other primer, adhesive most materials such as metal, plastic, ceramic and glass, adhesive PP, PE needs to match a specific primer.



Main Applications:

Ø The vehicle lamp shade for air tightness sealing adhesive, waterproof, dustproof sealing instrument, automobile and ship's windshield waterproof sealing.



● How to Use

Ø Before use, stir component A by hand or machine properly, keep component B sealed in the bucket and shake the bucket adequately.

Ø Check whether it’s adhering to Applied Materials theoretically.

Ø Mix component A and B with the mix ratio A: B=10:1 by weight. Beforehand simple tests are requested if you need to change the mix ratio.

Ø Vacuum defoaming is not necessary if the potting thickness is below 5mm, but it is requested if the thickness is more than 5mm.

Ø Heating curing is unsuited, or pinholes and blisters will occur.

Ø Long-term exposure of component B in the air is unsuited.

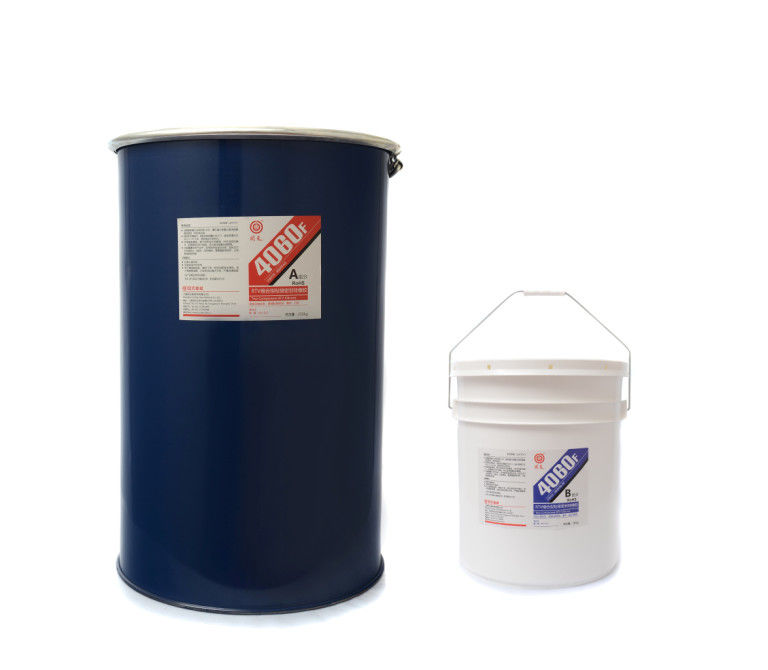

Packing:

A: 25kg/bucket, B: 18kg/bucket.

A: 230kg/bucket, B: 18kg/bucket.



● Storage:

Ø Keep it away from children.

Ø Use it in ventilated places

Ø In case of contact with skins, wipe and then flush with clear water.

Ø In case of contact with eyes, flush with clear water immediately and go to hospital for checking.

Ø Store it in dry and shady places at the temperature of 8~28℃

Ø Storage life: 6 months since the date of manufacture.



● Technical Data

Item Unit Typical Value
Color Component A   White
Component B   Black
Component of Basic Materials   Polysiloxane
Density Component A g/cm3 1.36
Component B 1.01
Viscosity Component A mPa*s 100000
Component B 20000
After Mixed
Mix Ratio by weight (A:B)   10:1
Handing Curing Time min 3
Initial Curing Time min 20
Full Curing Time hour 24
Tensile Strength After Curing Mpa 1.5
Elongation at break % 250
Harness Shore A 39
Volume Resistivity Ω*cm 2.0x1015
Work Temperature -60~200
