5295 Electrical Potting Compound for power supply , LED potting compound

5295 Electrical Potting Compound for power supply , LED potting compound

5295 Electrical Potting Compound for power supply , LED potting compound

Product Details:
Place of Origin: China
Brand Name: Huitian
Certification: UL,SGSL
Model Number: 5295
Detail Information
Place of Origin:
China
Brand Name:
Huitian
Certification:
UL,SGSL
Model Number:
5295
Material:
Silicone
Color:
Grey
Density:
1.57
Viscosity:
3800
Mix Ratio:
1:1
Handing Curing Time:
85 Mins
Work Temperature:
-60~200
High Light:
potting electronic components , potting compound for electronic components
Trading Information
Minimum Order Quantity:
500 kg
Price:
Negotiation
Packaging Details:
10KG/BUCKET
Supply Ability:
200 TON MONTH
Product Description

5295 Potting Silicone for power supply and LED lamp



Main Applications

1.For the deep potting of power supply and electronic components and parts.

2.Specially suitable for the potting of inside and outside LED displays that request for flame retardance.

5295 two-component silicone compound


●INTRODUCTION
·5295 is a addition 2-part and flame retardant silicone compound.It is suitable for potting dense electronic component packages requiring heat dissipation as it has low viscosity and high thermal conductivity. This compound has excellent thermal stability, electrical properties, is compatible with most electrical insulating materials and has a UL 94 Flame Rating of 94 V-0,and it has large scope of heat resistance,the temp. could be from -60 to 250℃



●APPLICATIONS
·General potting applications: power supplies, connectors, sensors, industrial controls, transformers, amplifiers, high voltage resistor packs, relays

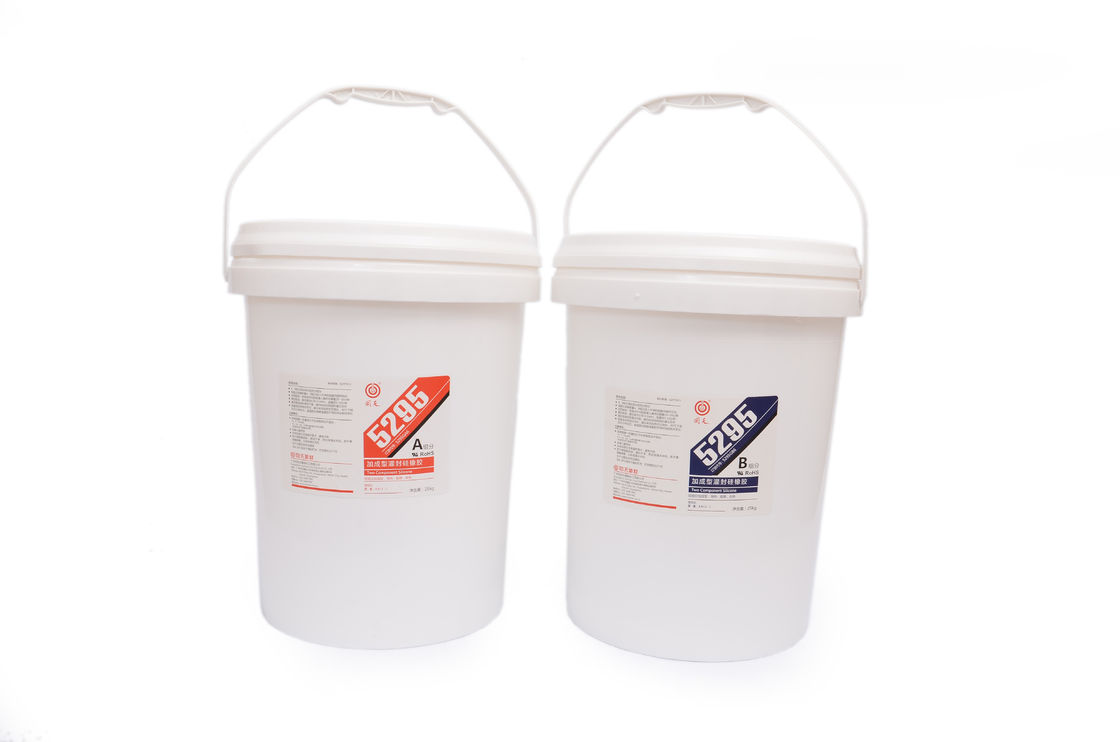

5295 Electrical Potting Compound for power supply , LED potting compound 0

Item Unit Typical Value
Color Component A   Grey
Component B   White
Component of Basic Materials   Polysiloxane
Density Component A g/cm3 1.57
Component B 1.57
Viscosity Component A mPa*s 3800
Component B 3600
After Mixed 3800
Mix Ratio by weight (A:B)   1:1
Handing Curing Time min 85
Initial Curing Time hour 6
Full Curing Time min(80°C) 25
Thermal conductivity After Curing W/(m·K) 0.63
Dielectric constant 1.2MHz 3.0
Harness Shore A 65
Volume Resistivity Ω*cm 1.5x1014
Dielectric Strength KV/mm 21
Work Temperature °C -60~20









5295 Electrical Potting Compound for power supply , LED potting compound 1
