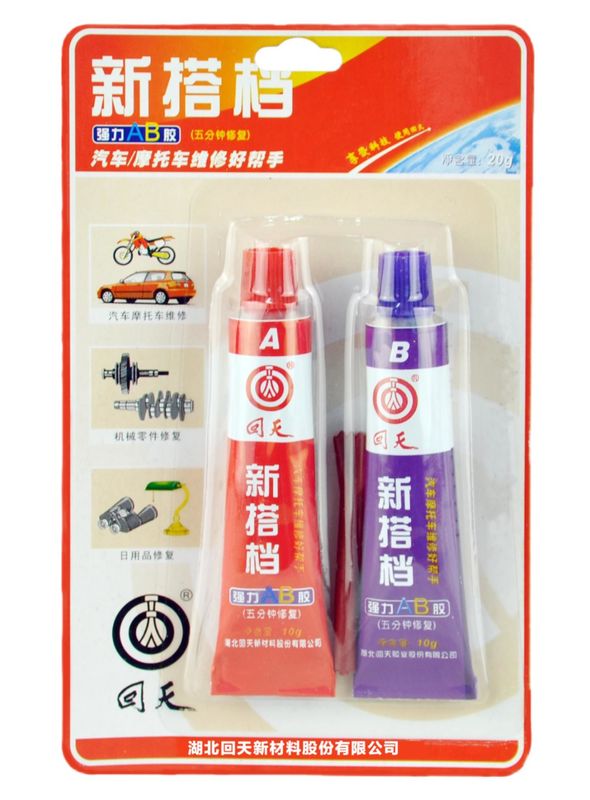

New Partner AB Glue 5 Mins used for self-adhesion and mutual adhesion of metal, ceramics, plastics, and wood

New Partner AB TDS-EN.pdf

Huitian^® New Partner AB adhesive features fast curing at room temperature and can be directly bonded on slightly oily surfaces to repair oil leaks in fuel tanks, oil tanks, oil pipes, flanges, transformer heat sinks, and other equipment. It can also be used for self-adhesion and mutual adhesion of metal, ceramics, plastics, and wood.

Typical applications

Mainly used to repair oil leaks in fuel tanks, oil tanks, oil pipes, flanges, transformer heat sinks, and other

equipment. Also can be used for bonding and assembly of automobile plastic panels, lamps, electrical shells, elevators, motors, and other industrial products.

Properties before curing

                                     Typical value

Appearance of part A        Red

Appearance of part B      Green

Mixing ratio                        1:1

Mixing properties

Initial curing time (min)     1~6

Filling thickness (mm)        0.2

Properties after curing

                                   Typical value                       Range

Appearance                 Blue solid

Tensile strength (MPa)                                              ≥18

(GB/T1040.2-2006-T)

Impact strength                                                    ≥1.0J/cm²

Working temperature (℃)                                     -55~121

Cautions

The glue has the characteristic irritating odor of acrylic resin, so the place where the product is used should be well-ventilated.

The product undergoes intense chemical reactions when mixing, so the dosage for single use should not be too large, and the appropriate dosage is 2~20 g.

The curing of the product is relatively fast. During use, it is necessary to first get the workpiece to be bonded ready, and then complete the application and initial curing within 3~5 min after glue mixing.

The product is composed of two components. The unused glue should be sealed with caps. The caps for parts A and B should not be mistaken.

Avoid children’s contact with and accidental ingestion of the product.

Please consult the MSDS of the product for safety precautions.

Application guide

Clean the surface to be bonded to, remove oil and impurities, and dry the surface. Evenly mix the New Partner AB adhesive at 1:1 (v/v), and apply it on the part. The Initial curing strength can be reached after applying finger pressure for 8~10 min, 70% strength can be reached 2 h later, and full curing can be reached 24 h later.

Storage

The product should be stored in a cool, dry warehouse without direct sunlight, and the best temperature is 8°C~25°C. The unused glue should be sealed and stored for reuse. The contaminated glue should not be returned to the original package bottle; otherwise, the performance of the remaining glue in it will be affected. Shelf life is 18 months.

Data range

The data are typical values or allowable ranges and have been obtained based on actual test data and periodic verification.

Disclaimer

The data in this document is for reference only and is reliable. Huitian assumes no responsibility for any results obtained by methods beyond our control. It is the responsibility of the user to determine the suitability of this product and to take appropriate measures to prevent damage and personal injury that may occur during storage and use of the product. It is recommended that the user conducts tests before using the product to verify whether it meets the requirements for use.
