5299 Two-part Addition-Type Potting Compound Potting Of Various Electrical Components such As Photovoltaic Inverters

Name: 5299 Two-part Addition-Type Potting Compound Potting Of Various Electrical Components such As Photovoltaic Inverters
Brand: HUITIAN
SKU: 5299
Rating: 4.7 (144 reviews)

5299 Two-part Addition-Type Potting Compound Potting Of Various Electrical Components such As Photovoltaic Inverters

Product Details:

Place of Origin:	Guangzhou, China
Brand Name:	HUITIAN
Certification:	UL RoHS
Model Number:	5299

Detail Information

Place of Origin:

Guangzhou, China

Brand Name:

HUITIAN

Certification:

UL RoHS

Model Number:

5299

Appearance Part A:

Grey Liquid

Appearance Part B:

White Liquid

Mix Ratio By Weight:

1:1

Viscosity Part A:

2,000-3,500 MPa·s

Viscosity Part B:

2,000-3,000 MPa·s

Density Part A:

1.62±0.08 G/cm³

Density Part B:

1.62±0.08 G/cm³

Operating Time:

70-90 Mins

Curing Time @25℃:

2-4 H

Curing Time @80℃:

10-30 Mins

Hardness Shore 00:

40-50

Dielectric Strength:

≥20 KV/mm

Volume Resistivity:

＞1.5×10^14 Ω·cm

Flame Retardant Rating:

UL94-V0

Highlight:

electrical potting compound , silicone potting compound for electronics

Trading Information

Minimum Order Quantity:

500 KG

Price:

Negotiation

Packaging Details:

25kg/barrel

Delivery Time:

8-24 days

Payment Terms:

L/C, T/T

Supply Ability:

2000T/Month

Product Description

5299(A9,B9) TDS-EN.pdf

5299 is a 1:1 two-component addition-type potting silicone rubber, with 0.6 W /m·K thermal conductive, flame retardant.

Applications
All kinds of electrical components of thermal conductivity, flame retardant potting, such as photovoltaic inverters, LED drive power.charging piles, automotive electronics, NEV power, controllers etc.

Product Features

1) Good thermal conductivity and flowability

2) Both room temperature and heat curing

3) Good weather and aging resistance

4) Excellent insulation properties

5) Flame retardant rating UL94 V-0

6) Maintains rubber elasticity from -50°C to 200°C

7) RoHS Directive

Technical parameters

Reference standard¹	Item	Unit	Value
Properties before curing (25±2℃, 60±5%RH)
Q/HTXC 2	Appearance (A)	-	Grey fluid
	Appearance (B)	-	White fluid
GB/T2794	Viscosity (A)	mPa·s	2,000-3,500
	Viscosity (B)	mPa·s	2,000-3,000
GB/T13354	Viscosity (A)	g/cm³	1.62±0.08
	Viscosity (B)	g/cm³	1.62±0.08
Properties after curing (25±2℃, 60±5%RH, A:B=1:1)
Q/HTXC 2	Operating time	min	70-90
Q/HTXC 2	Curing time (25℃)	h	2-4
Q/HTXC 2	Curing time (80℃)	min	10-30
GB/T 531	Hardness (Shore 00)	--	40-50
Q/HTXC 2	Dielectric strength	KV/mm	≥20
Q/HTXC 2	Volume resistivity	Ω·cm	≥1.5×10¹⁴
Q/HTXC 2	Dielectric constant	-	≥2.8
ISO 22007-2	Thermal conductivity	W/(m·K)	0.6-0.7

Cautions

Store the product in a sealed container, and keep it away from children.

The glue will not cure if exposed to a certain amount of the following chemicals:

Organic compounds of N, P, and S; ionic compounds of Sn, Pb, Hg, As, etc.;

Compounds containing alkyne and polyvinyl.

To avoid the above problem, try to wipe off the residual rosin when using the glue on the circuit board, and use a soldering tin with low lead content.

This product is non-hazardous. Please consult the MSDS of the product for safety information.

Storage

Store at 0-35°C in a cool and dry place.

Shelf life is 6 months.

Packing specification

Order code:

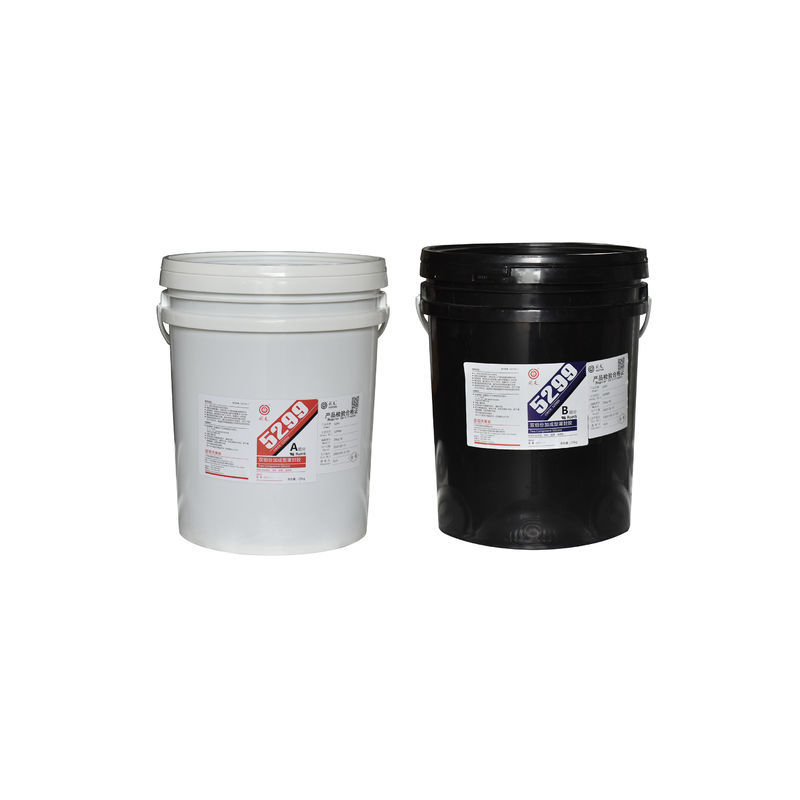

5299 A9 25 kg/barrel

5299 B9 25 kg/barrel

5299 Two-part Addition-Type Potting Compound Potting Of Various Electrical Components such As Photovoltaic Inverters 0

Huitian Addition-type potting production line
