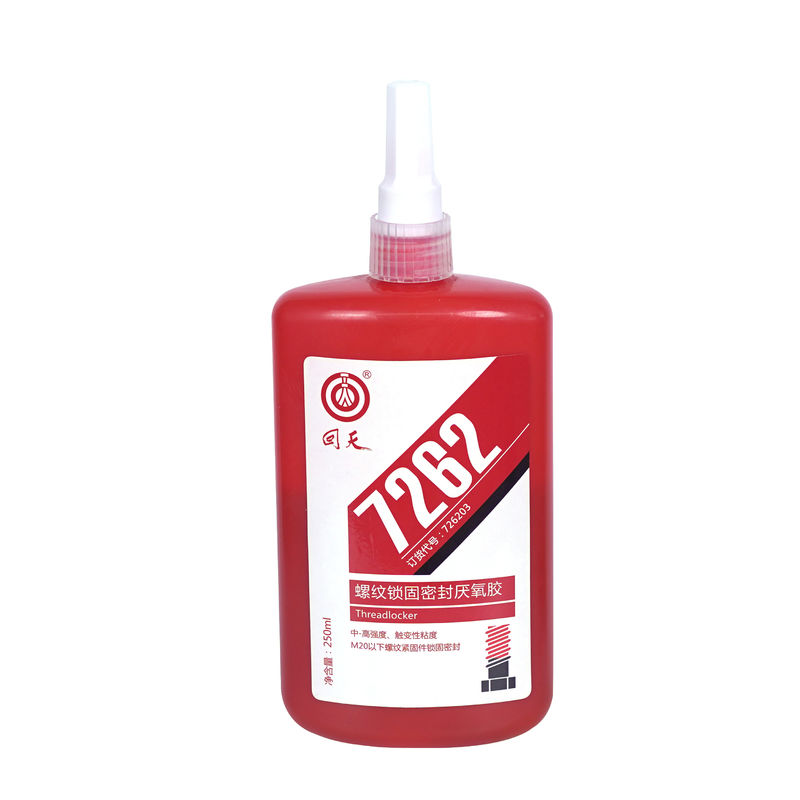

7262 Mi-High Strength Red Thixotropic Anaerobic Thread Locker For Under M20 Thread Locker/ Thread Sealant/ Liquid Gasket

7262 TDS-EN-R.pdf

Huitian^® 7262 is a one-component thread-locking anaerobic adhesive that features thixotropy, medium-high strength, and excellent resistance against fluid. The product cures when confined in the absence of air between close-fitting metal surfaces.

Typical Application

Permanent locking of thread-locking below M20 can be widely used for locking and sealing parts with large force.

Red Screw Thread Locking Adhesive 7262 replacing Loctite 262 for under M20 thread locker

Properties before curing

                                                     Typical value                               Range

Appearance                                    Red liquid

Chemical type                              Methacrylate

Viscosity (mPa·s)

(GB/T2794-1995)

Brookfield RVT

3#spindle 2.5rpm                           5,000~8,500 thixotropy

20 rpm                                           1,800~2,400 thixotropy

Density (g/cm³)                                    1.10                                   1.00-1.15

(GB/T13354-1992)

Flash point (℃)                                                                                 ＞93

(SH/T0733-2004)

Max filling gaps (mm)                           0.13

Fixture time (min)                                                                               ≤20

Properties after curing

Curing time at RT (h)                              24

Breakaway torque (N·m)                        22                                  14.1~28.2

Carbon steel natural color bolt (GB/T18747.1-2002)

Average dismounting torque (N·m)        30                                   16.9~33.9

Carbon steel natural color bolt (GB/T18747.1-2002)

Working temperature (℃)                                                              -50~150

Chemical/solvent resistance

Aged under conditions indicated and tested @ 22°C

Solvent                                           Temperature (℃)                 % of initial strength

                                                                                                100h   500h   1000h   5000h

Engine oil                                             125                               90       80        75        75

Leaded petrol                                        22                                95       90        90        90

Brake fluid                                             22                               100     100     100       100

Ethanol                                                  22                                90       90        75        75

Acetone                                                 22                                85       85        80        80

Water/glycol                                           87                              100      70        65         60

(50%/50%)

Directions for use

Clean-up: For best results, clean all surfaces (external and internal) with a Huitian 7755 cleaning solvent and allow to dry.

Gluing: Apply glue evenly to the thread engagement area, with sufficient glue to fill the thread gap, and tighten in one pass as required by the specification. Curing speed slows down as the gap increases If the cure speed is too slow, spray all threads with Activator 7769 and allow to dry.

Assembly: Shake the product thoroughly before use. To ensure that the system achieves maximum performance, the recommended curing time is 24 hours or more to ensure that the adhesive layer is fully cured.

Cautions

Not suitable for use on plastic parts, not suitable for use in pure oxygen and oxygen-rich systems, and not for sealing chlorine or other strong oxidizing substances.

Store unused glue in a sealed container for next use. Contaminated glue should not be refilled into the original bottle as this may affect the performance of the remaining glue.

This product contains acrylic and methacrylate substances which are irritating to the skin and eyes. Recommended for use in a ventilated area. In case of accidental contact with eyes and skin, rinse immediately with water.

Keep away from children for storage.

For safe handling information on this product, consult the Safety Data Sheet (SDS).

Packing specification

Order code: 726201, 50ml/tube, 10 pcs/carton, 80 pcs/box

         726203, 250ml/bottle, 10 pcs/carton

Storage

Optimal Storage: 8 °C to 21 °C. Storage below 8 °C or greater than 28 °C can adversely affect product properties.

Shelf life is 18 months

We can also make:

1. Low strength & thixotropic thread locker

2. Middle strength & thixotropic thread locker

3. High strength & oil resistant thread locker

4. High strength & chemical resistant thread locker

5. High strength & thixotropic thread locker

6. High strength & high viscosity thread locker

7. High strength & middle viscosity thread locker

8. High-strength & high-temperature resistant thread locker

9. High strength & fast osmotic thread locker

Performance of thread locker and sealant anaerobic adhesive/pre-coated thread locker and sealant anaerobic adhesive

Note: *Viscosity - measured at Brookfield RVF 20rpm: *2 # rotor **3 # rotor ***4 # rotor ****5 # rotor
