| Place of Origin: | China |
| Brand Name: | Huitian |
| Certification: | JC 887-2001 |
| Model Number: | 9767 |
Huitian is a total adhesive solution provider for construction industry, including products for curtain wall, stones, insulating glass, doors and windows.
Construction Adhesive 9767 stone dry-hang structural sealant, neutral curing sealant, silicon building adhesive
Introduction of 9767
9767 is two-component, brown, paste, room temperature curing structural bonding epoxy sealant. It is dedicated used for dry-hang stone
Properties
| Test item | Index | |
| Appearance | A component | Grey white paste |
| B component | Dark brown red thixotropic paste | |
| Mixture | Brown paste | |
| Applicable period | Min | >30-90 |
|
Shear strength (steel-steel, MPa) |
A+B (1:1) |
>8 |
| >8 | ||
|
Compression and shear strength MPa |
Stone-stone | Standard condition 48h >10.0 |
| Soaking 168h >7 | ||
| Heat Treatment 80℃ 168h >7 | ||
| Thawing cycle 50 times >7 | ||
| Stone-Stainless steel | Standard condition 48h >10.0 | |
| Working temperature | ℃ | -40~100 |
Standards Compliant
Industry Standards JC 887-2001
How to Use
1.Dry-hang method: Open a short or long slot at the up and down of the flagstone, the flagstone thickness is commonly 25 ~ 30 mm, slot width is commonly 7~ 8 mm. Put 9767 into slot, and then insert the stainless steel pendant side in the slot, the other side connect to the wall of steel net, steel net is box iron or angle iron
2.Back tied method: punch four circular slot at the flagstone back, put 9767 into flagstone back, insert four metal anchors into the circular slot and link them, fix the flagstone
3.Direct bonding method:Gluing9767 on the flagstone four corners, then gluing in the center, and then attached the back of flagstone to the wall. This method need high flatness of the wall
Packing Specification

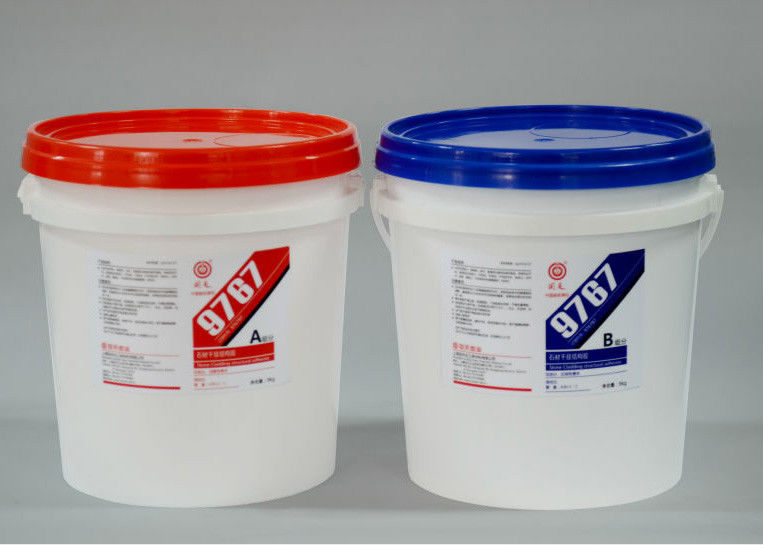

18kg/set, A component: plastic drum 9kg/drum, B component: plastic drum 9kg/drum
Color
A component is light brown paste, B component is dark brown red thixotropic paste, and the mixture is brown paste
Storage and usable life
Should be stored below 27℃ in the cool, dry place, this product has a usable life of 9 months from the date of manufacture
Limitations
1.Mix A and B component according to weight ratio 1:1 in a container, then gluing on the bonding slot or surface
2.Curing six hours in room temperature can be structural strength, the totally curing time will be longer in winter
3.The basic material surface temperature should not below 5℃
4.The bonding surface should be dry(moisture percentage should not beyond 15%), no dust, no oil stain. Rough handling must be done when the bonding surface is too smooth
Introduction of Huitian
Established in 1977, Huitian is now one of the biggest adhesive manufacturers in China. There are four manufacturing bases in total, providing high performance adhesives for different industries.
Huitian has a fully automatic production line for construction adhesives and the capacity can reach 15,000MT/Year .
Huitian's construction adhesives have been widely used in big construction projects and are well reviewed.
Besides construction adhesives, Huitian also provides many others kinds of products for different industries,transportation,electronics,photovaltaic,ets.
Huitian is your reliable partner and satisfy your need of adhesives!
