Blue Gasket Maker Sealant for gasket sealing , oil pan gasket maker Blue

Blue Gasket Maker Sealant for gasket sealing , oil pan gasket maker Blue

Blue Gasket Maker Sealant for gasket sealing , oil pan gasket maker Blue

Product Details:
Place of Origin: China
Brand Name: Huitian
Certification: ISO
Model Number: Blue power seal
Detail Information
Place of Origin:
China
Brand Name:
Huitian
Certification:
ISO
Model Number:
Blue power seal
Color:
Blue
Density:
1.3~1.5 G/cm3
Viscosity’s:
6~15
Mobility, Mm; 3min,25℃:
≤11
Odor:
No Odor
Dry Time, Min:
5~25min
Tensile Strength:
≥1.0
Tensile Strength, %:
160~300
Hardness Shore A:
30~45
High Light:
silicon gasket maker , rtv high temp silicone sealant
Trading Information
Minimum Order Quantity:
3000
Price:
Negotiation
Packaging Details:
55g/pc, 100pcs/carton
Delivery Time:
7~14 working days
Payment Terms:
L/C, , D/P, T/T
Supply Ability:
10000 pics per day
Product Description

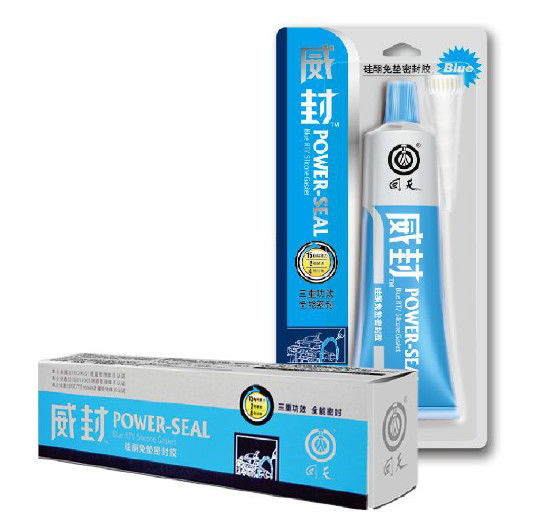

Blue Power-seal Gasket Maker, RTV silicone sealant, 55g/90g,for gasket sealing



Blue Power-seal seal products back after contact with moisture-cured to form a silicone rubber gasket having flexibility. The product has anti-aging, weathering, heat, will not harden, shrink or crack and other properties. It is mainly used engine oil pan, transmission gear cover, axles and other parts of the bonding and sealing. This product is suitable for a temperature range of -60 ℃ ~ 300 ℃



Typical Usage

This product is not binding limit the size and shape of the face, can replace a variety of rubber, asbestos mat, cork pad and paper pad, to the flange of the automobile, motorcycle engines, gear boxes, axles and various machinery and equipment combined with the implementation of the sealing surface.



Technical Data

Properties before Curing
  Typical Value Limits
Density(25℃),g/㎝3   1.25~1.35
Viscosity’s   5~20

Mobility, mm;

3min,25℃

  ≤10
Odor   No odor

Dry Time, min:

(Curing Condition: temperature 25℃,50±5%RH)

  2~30min
Properties after Curing
Tensile Strength, N/mm2   ≥1.5
Tensile Strength, %   400
Hardness shore A   30



At 125 ℃, 30 # 24h after oil immersion
Tensile strength, N / mm2 ≥ 1
Elongation at break,% ≥ 400
Temperature performance:
At 200 ℃, after 168h
Tensile strength N / mm2 ≥ 1
Elongation at break,% ≥300



How to Use:

1.with cotton and organic solvent to be sealed remove surface oil and impurities.

2. the plastic tube in a suitable whole cut beak, with the glue gun glue to end faces to be sealed, and allowed to form a continuous plastic ring.

3.close two seal faces and secured with bolts.

4.one hour early solid, at 25 ℃, 50% humidity, fully cured within 24 hours. In cooler or dry conditions takes a long time to cure.

5.sealed hose sealant remaining can be used until the next one.



Storage:

Storage In a cool dry place for one year.



Packaging

55/pc 100pcs/carton
90g/plate 80platess/carton
