Blue Power Seal TDS-EN.pdf

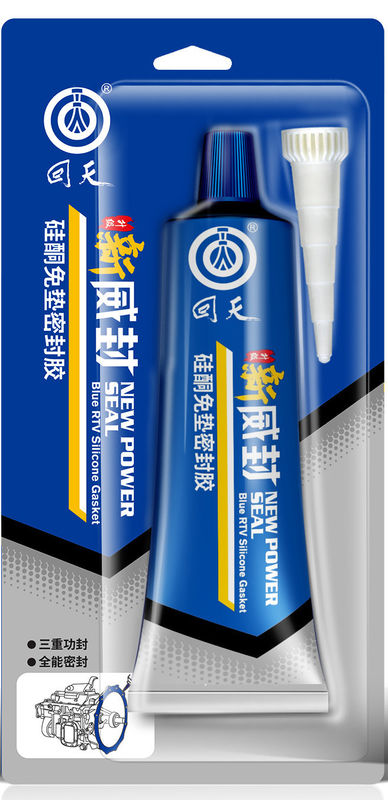

BLUE RTV Silicone Gasket Maker, Sealant, 55g/90g, for engine seal
Blue Power Seal silicone gasket-free sealant is a one-component, blue, high-performance de oxime type room temperature vulcanized silicone rubber. The adhesive layer is elastomeric after curing, with good resistance to changes in temperature and stress, excellent resistance to high temperature, oil and weather, and other properties.
Typical applications
Mainly used for assembly and maintenance of various high-end vehicles, and suitable for sealing of surfaces of axles, oil pan transmission, etc., as well as plane sealing of mechanical, electronic, and chemical products.
Properties before curing
Typical value Range
Appearance Blue paste
Chemical composition Polysiloxane
Density (g/cm3) 1.3 1.25-1.4
(GB/T13354-1992)
Tack-free time (min) 10 2-20
(23℃/50%RH)
(GB/T13477.5-20)
Pressure flow viscosity (s/10g) 6 5-20
(0.5MPa, 23℃, 3mm)
Properties after curing
Tensile strength (MPa) 2.0 ≥1.5
(GB/T528-1998)
Elongation at break (%) 450 ≥400
(GB/T528-1998)
Hardness (Shore A) 35 ≥30
(GB/T531-1999)
Operating temperature (℃) -60~260
Oil resistance
Tensile strength (MPa) 1.5 ≥1.0
after soaking in 30# oil at 125°C for 24h
(GB/T528-1998)
Elongation at break (%) 450 ≥400
(GB/T528-1998)
Temperature resistance
Tensile strength after 168h at 200°C
(MPa) (GB/T528-1998) 2.0 ≥1.0
Elongation at break (%) 350 ≥300
(GB/T528-1998)
Directions for use
Clean-up: Clean the surface and remove rust, dust, oil, etc.
Gluing: Cut a suitable small hole in the spout of the cartridge and apply glue with a glue gun to the end face to be sealed, to form a continuous glue ring. In the case of pneumatic application, the air pressure is recommended not to exceed 0.4MPa.
Curing: Fold the two end faces and fasten them with bolts; the initial curing time is one hour, and the full curing time is 24 hours at 25°C and 50% humidity. Longer curing time is required in colder or dry conditions.
Storage: Unused adhesive should be stored after immediately tightening the cap and sealing the nozzle. When used again, if there is a small amount of crust on the seal, just remove it, and it won’t affect the normal use of the product. During storage, a small amount of crust may appear at the mouth of the tube, which can be removed for normal use and won’t affect the performance of the product.
Cautions
Keep away from children for storage.
If the skin is accidentally exposed to the product, wipe it with a cloth and wash it with water before it cures. If the eyes are accidentally exposed to the product, rinse immediately with water.
Use in a well-ventilated place is recommended.
Please consult the MSDS of the product for safety information.
Packing specification
55g/tube, 100 tubes/carton; 90g/tube, 80 tubes/carton
Storage
Store at 8-28°C in a cool and dry place.
Shelf life is 12 months.
