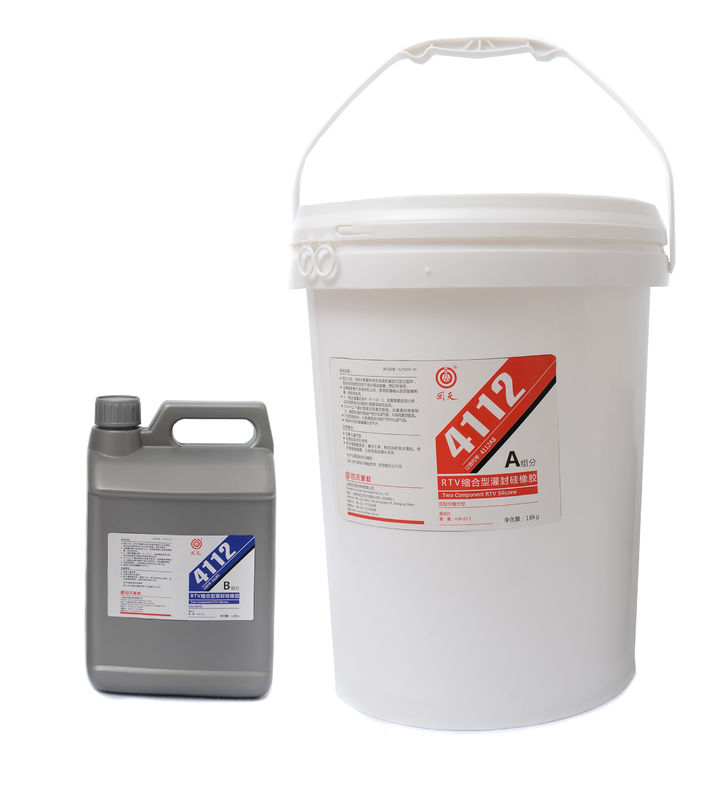

4112 RTV Silicone Potting Sealant / B Translucent Silicone Adhesive Sealant

4112 RTV Silicone Potting Sealant / B Translucent Silicone Adhesive Sealant

4112 RTV Silicone Potting Sealant / B Translucent Silicone Adhesive Sealant

Product Details:
Place of Origin: CHINA
Brand Name: HUITIAN
Certification: SGS
Model Number: 4112
Detail Information
Place of Origin:
CHINA
Brand Name:
HUITIAN
Certification:
SGS
Model Number:
4112
Color:
B Translucent
Density:
B 0.92
Viscosity:
1000
Mix Ratio By Weight (A:B):
10:1
Handing Curing Time:
60 MINS
Tensile Strength:
0.5MPA
Elongation At Break:
170%
Hardness:
Shore A 12
Work Temperature:
-60-200
Highlight:
Silicone Potting Compound , potting compound for electronic components
Trading Information
Minimum Order Quantity:
400KG
Price:
Negotiation
Packaging Details:
5KG/bucket,1KG/bucket
Payment Terms:
L/C, T/T
Supply Ability:
10000 KG MONTH
Product Description

Detailed Product Description



Color: B Translucent Density: B 0.92
Viscosity: 1000 Mix Ratio By Weight (A:B): 10:1
Handing Curing Time: 60 MINS Tensile Strength: 0.5MPA
Elongation At Break: 170% Hardness: Shore A 12
Work Temperature: -60-200



   4112 RTV Silicone Potting Sealant For the deep potting of power supply and electronic components and parts.



Product Features:

Ø Double component, condensation type.

Ø Room temperature curing.

Ø Ethyl alcohol released after curing, non-corrosive to electronic components

Ø High adhesion to all electronic components except for those made of PP&PE.

Ø High performance on insulation, damp proofing, vibration resistance, chemical resistance, electricleakage resistance.

Ø No need to add primer coating before use

Ø High & low temperature resistant

Ø Flame retardant rating:UL94 V-1



Main Applications:

Ø For the deep potting of power supply and electronic components and parts.

Ø Especially suitable for the potting of inside and outside LED displays that request for flame retardant.

Item Unit Typical Value
Color Component A   Translucent
Component B   Translucent
Component of Basic Materials   Polysiloxane
Density Component A g/cm3 0.95
Component B 0.92
Viscosity Component A mPa*s 1200
Component B 8
After Mixed 1000
Mix Ratio by weight (A:B)   10:1
Handing Curing Time min 60
Initial Curing Time hour 3
Full Curing Time hour 72
Tensile Strength After Curing Mpa 0.5
Elongation at break % 170
Hardness Shore A 12
Volume Resistivity Ω*cm 1x1014
Dielectric Strength KV/mm 25
Flame Retardant Rating   UL94 V-1
Work Temperature -60~200



● How to Use

Ø Before use, stir component A by hand or machine properly, keep component B sealed in the can and cut a proper hole at the sharp mouth of cartridge.

Ø Check whether it’s adhering to Applied Materials theoretically.

Ø Mix component A and B with the mix ratio A: B=10:1 by weight. Beforehand simple tests are requested if you need to change the mix ratio.

Ø Vacuum defoaming is not necessary if the potting thickness is below 5mm,but it is requested if the thickness is more than 5mm.

Ø Heating curing is unsuited, or pinholes and blisters will occur.

Ø Long-term exposure of component B in the air is unsuited.



Packing:

Ø A: 5kg /bucket, B: 1kg/bucket.



● Storage:

Ø Keep it away from children.

Ø Use it in ventilated places

Ø In case of contact with skins, wipe and then flush with clear water.

Ø In case of contact with eyes, flush with clear water immediately and go to hospital for checking.

Ø Store it in dry and shady places at the temperature of 8~28℃

Ø Storage life: 12 months;
