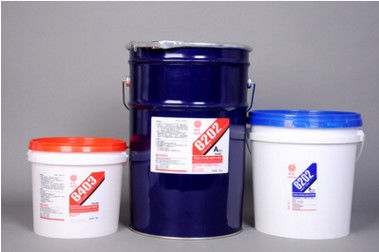

6202 (HT6202T) Double component heat curing epoxy potting Compound for Automobile ignition coil

6202 (HT6202T) Double component heat curing epoxy potting Compound for Automobile ignition coil

6202 (HT6202T) Double component heat curing epoxy potting Compound for Automobile ignition coil

Product Details:
Place of Origin: China
Brand Name: Huitian
Model Number: 6202
Detail Information
Place of Origin:
Brand Name:
Model Number:
B Yellow
Density G/cm3:
B 1.15
Viscosity Mpa.s:
B 60
Weight Ratio:
A:B =100:28
Volume Ratio:
A:B =100:44
Operation Time 130g GB/T 7123.1-2002):
High Light:
electrical potting compound , silicone potting compound for electronics
Trading Information
Minimum Order Quantity:
10 SET
Packaging Details:
41kg/Set A component 32kg/bucket. B component 9kg/bucket
Delivery Time:
8-15 DAYS
Payment Terms:
L/C, T/T
Supply Ability:
Product Description

1.Product identification

Product Name: HT-6202T two-component epoxy potting adhesive

Manufacturer / supplier: Shanghai Huitian new material Co., Ltd.

Address:No. 251 Wenji Road Songjiang Shanghai China(Post Code: 201600)



2.Components / component information

Chemical name CAS# %(Weight ratio)

A Components

DGEBAEpoxy resin 25068-38-6 25-35

Diluent / 5-10

Silicon powder / 60-70

B Component

Modified anhydride / 70-80

Accelerator / 1


3.Risk overview

Risk classification: non hazardous chemicals

Skin contact: may cause irritation and allergic reactions.

Eye contact: may cause irritation.

Inhalation: Stream produced by heating may make irritation to the respiratory tract. In the room tempreture, adhesive excluding volatile matter, No inhalation hazard.

Ingestion: ingestion of harmful


4. First aid measures

Skin contact: take off contaminated clothing, immediately wash with water and soap.

Eye contact: rinse with water. And asap go to hospital.

Inhalation: from exposure to fresh air. If necessary go to hospital.

Ingestion: generally does not require treatment, taking large amount should be hospitalized.


5.Fire protection measures

Flash point: not determined,>130℃.

Fire extinguishing agent: water spray, foam, dry powder, carbon dioxide.

Special fire protection measures: to prevent inhalation of smoke. Wear positive pressure self-contained breathing apparatus. Water can reduce the smoke density.

Hazardous combustion products: COx, and other organic matter.

Combustion limit: no data.


6.Leak emergency measures

Don't touch the skin. As far as possible leakage glue clean. Use solvents or soapy water to clean the residue. Waste is placed in an appropriate container, processing according to local laws and regulations.


7.Job handling and storage

Handling: Do not contact with skin and eyes.

Storage: This product should be stored in low temperature shade. Keep away from fire and heat source.


8.Controls / personal protection contact

Ventilation: the conventional mechanical ventilation.

Occupation contact limiting value

Silicone rubber: not specified

Eye protection: protective glasses or safety glasses.

Hand protection: rubber or plastic gloves.

Respiratory protection: generally do not need, using certified respirator when necessary.


9.Physical and chemical properties

Traits: grey fluid colloid.

Boiling point: no data

Solubility: insoluble in water, soluble in hydrocarbon solvents.

Relative density (=1): 1.6-1.8

Vapor density: no data


10.Stability and reactivity

Chemical stability: stable under normal conditions.

Conditions to avoid: This product and the curing agent reacts.

Incompatible materials: strong oxidant, strong acid, strong alkali.

Hazardous decomposition products (non thermal): No.

Hazardous polymerization: generally does not occur.


11.Toxicological information

Acute toxicity (epoxy resin):

The rats by LD50:11400 mg/kg.

Rabbit percutaneous LD50:> 20 ml/kg.

Carcinogenicity: not included in the IARC list of carcinogens.

Allergic: can cause skin allergies.


12.Ecological information

No data



Waste disposal instructions: to comply with local environmental regulations



Domestic (CN-GB), International (IMO, IATA, UN) were not specified. Non dangerous goods.
