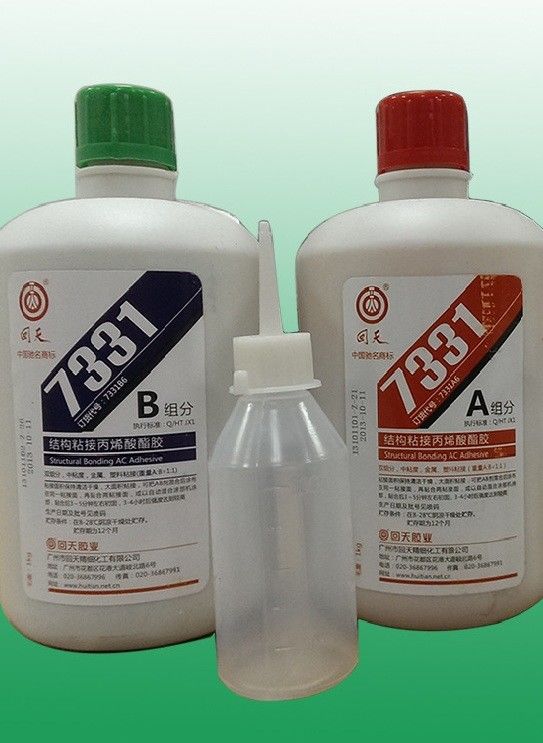

7331 Structural acrylic adhesive Elevator stiffener , bonded magnet and the metal micro motor and loudspeaker

7331 Structural acrylic adhesive Elevator stiffener , bonded magnet and the metal micro motor and loudspeaker

7331 Structural acrylic adhesive Elevator stiffener , bonded magnet and the metal micro motor and loudspeaker

Product Details:
Place of Origin: China
Brand Name: Huitian
Model Number: 7331
Detail Information
Place of Origin:
China
Brand Name:
Huitian
Model Number:
7331
Color:
A: Purple Red B: Green
Viscosity:
5000 MPa.s
Mix Ratio:
1:1
Shelf Life:
12 Months
Work Temperature:
-30-90℃
Composition:
Modified Acrylate
High Light:
Silicone Potting Compound , potting compound for electronic components
Trading Information
Minimum Order Quantity:
1000kg
Price:
Negotiation
Packaging Details:
20kg/set: A: 10kg/bucket, B: 10kg/bucket.
Supply Ability:
100MT/month
Product Description

Product Features:

7331 structural acrylic adhesive is the second generation of two-component acrylate adhesive cured at room temperature, with fast, work of good (can be manual or mechanical coating), impact resistance, high and low temperature resistance, oil resistance, water resistance, adhesion characteristics of metal bonding products and strong, especially suitable for galvanized sheet..



Typical use

Elevator stiffener, bonded magnet and the metal micro motor and loudspeaker

Resin arts and crafts, plastic toys, ceramic crafts, furniture, artificial stone bonding etc



Direction for use

Remove adhesive surface dust, moisture; keep the adhesive surface clean oil. Large area bonding, can put the AB mixture coated in the same bonding surface, then fit two adhered surface, or by automatic mixing and coating, after sticking around 3-5min, can get the 3-4 hours after the initial strength, strength to achieve higher.



Matters need attention

Keep it away from children.

Use it in ventilated places

In case of contact with skins, wipe and then flush with clear water.

In case of contact with eyes, flush with clear water immediately and go to hospital for checking.



Technical Data

Item Unit Typical Value
Color Component A   Purple red
Component B   Green
Component of Basic Materials   Modified acrylate
Density Component A g/cm3
Component B
Viscosity Component A mPa*s 5000
Component B 5000
After Mixed 2200
Mix Ratio by weight (A:B)   1:1
Handing Curing Time min 5
Initial Curing Time hour
Full Curing Time hour 24
Tensile Strength After Curing Mpa 0
Shear strength % 12
Hardness Shore A
Volume Resistivity Ω*cm
Dielectric Strength KV/mm
Flame Retardant Rating
Work Temperature -30-90





Package

2kg/Set

5kg/Set

50kg/Set

25kg/Set

25kg/Bucket



Storage

Store it in dry and shady places at the temperature of 8~28℃

Storage period is 12 months
