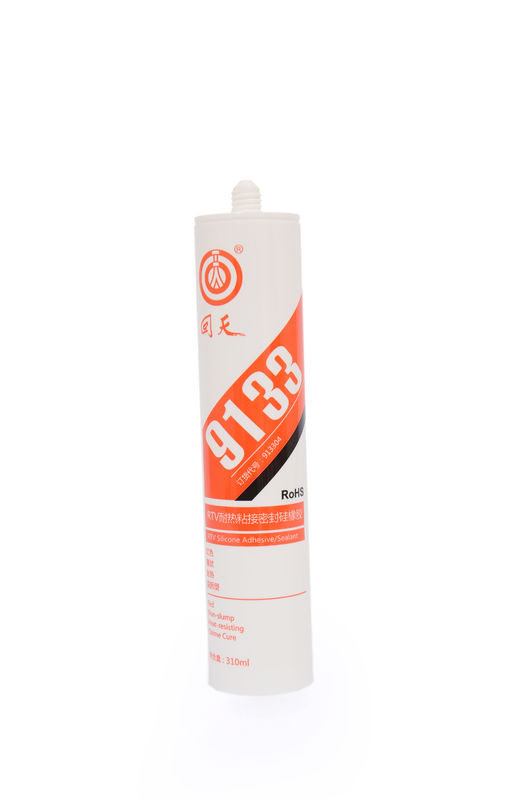

9133 High temperature potting compound for Steam iron , air filters , oven
Product Details:
| Place of Origin: | China |
| Brand Name: | Huitian |
| Model Number: | 9133 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000kg |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 20kg/set: A: 10kg/bucket, B: 10kg/bucket. |
| Supply Ability: | 100MT/month |
|
Detail Information |
|||
| Color: | Red | Density: | 1.28g/ml |
|---|---|---|---|
| Tensile Strength: | 2.4Mpa | Shelf Life: | 12 Months |
| Work Temperature: | -60-260℃ | Composition: | Polysiloxane |
| High Light: | silicone sealing compound,electrical potting compound |
||
Product Description
● Product Features:
Ø 9133 (HT903-1) RTV heat-resistant adhesive sealing silicone is single component, heat resistant, semi flowing, red, deoximation RTV silicone rubber.
Ø Smell small, has excellent heat resistance, in the -60 to 260 DEG C for a long time to maintain flexibility and stability; easy leveling, not penetrate into the small gaps, excellent sealing glue; after curing is elastic body, has the anti thermal change, excellent resistance to stress change performance; in full compliance with the requirements of the EU ROHS directive.
| Item | Unit | Typical Value | Range |
| Item No. | 9133 | ||
| Color | Red | ||
| Component of Basic Materials | Polysiloxane | ||
| Density | g/cm3 | 1.28 | 1.20~1.30 |
| Tack Free Time (25℃,50%RH) | min | 10 | 6~20 |
| Curing Type | Deoximation | ||
| Hardness | Shore A | 45 | 45±5 |
| Tensile Strength | Mpa | 2.4 | ≥2.0 |
| Elongation at break | % | 300 | ≥200 |
| Volume Resistivity | Ω*cm | 1.0×1014 | ≥1.0×1014 |
| Dielectric Strength | KV/mm | 17 | ≥15 |
| Work Temperature | ℃ | -60~260 |
● Main Applications:
Ø Steam iron, high temperature air filters, high temperature oven, high temperature sealing pipe and other industrial products production bonding.
● Specifications & Packages
Ø 310ml/cartridge, 25cartridges/carton.
● How to Use
Ø Keep the object surfaces clean without rusts, dusts and oil.
Ø Dispense the sealants to object surfaces.
Ø Put the objects in the air for 24 hours in the condition of room temperature & 55%RH to reach a cure depth of 2~4mm the longer, the deeper.
Ø The outlet of unspent adhesive should be sealed in time, clean the crusts on the outlet for another use within a short time, the performance of adhesive won’t be affected.
● Storage:
Ø Keep the sealant away from children.
Ø Use it in ventilated places
Ø In case of contact with skins, wipe and then flush with clear water.
Ø In case of contact with eyes, flush with clear water immediately and go to hospital for checking.
Ø Store it in dry and shady places at the temperature of 8~28℃
Ø Storage life is 12 months from the date of manufacture.
