Electronic Adhesive
>

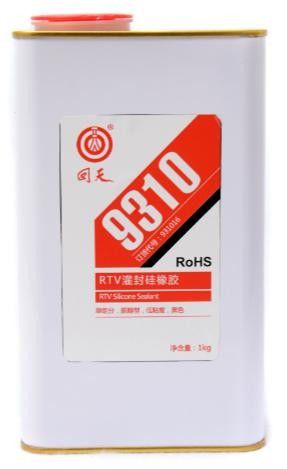

9310 Silicone Potting Compound For the sealing and bonding of LED lights

9310 Silicone Potting Compound For the sealing and bonding of LED lights

9310 Silicone Potting Compound For the sealing and bonding of LED lights

Product Details:
Place of Origin: China
Brand Name: Huitian
Model Number: 9310
Detail Information
Place of Origin:
China
Brand Name:
Huitian
Model Number:
9310
Color:
Semitransparent
Density:
1.1g/ml
Tensile Strength:
0.4Mpa
Shelf Life:
12 Months
Work Temperature:
-40-150℃
Composition:
Polysiloxane
High Light:
silicone sealing compound , electrical potting compound
Trading Information
Minimum Order Quantity:
1000kg
Price:
Negotiation
Packaging Details:
20kg/set: A: 10kg/bucket, B: 10kg/bucket.
Supply Ability:
100MT/month
Product Description

● Product Features:

       Ø Single component, room temperature curing, dealcoholization type.

Ø Neutral curing, becoming elastomer after curing.

Ø Alcohols released after curing, no irritant smell generated, non-corrosive to carbonate ester & copper materials.

Ø High thermal distortion and stress strain resistance.

Ø High temperature and humidity resistant.

Ø High performance on insulation, damp Proofing, vibration resistance, corona resistance, electricleakage resistance and chemical resistance.

Item Unit Typical Value Range
Item No.   9310
Color   Semitransparent
Component of Basic Materials   Polysiloxane
Density g/cm3 1.0 0.95~1.05
Tack Free Time (25℃,50%RH) min 5 5~10
Curing Type   Dealcoholization
Hardness Shore A 25 25±5
Tensile Strength Mpa 0.4 ≥0.4
Elongation at break % 300 ≥300
Shear Strength Mpa 1.8 1.5~2.3
Volume Resistivity Ω*cm 3.0×1015 ≥1.0×1015
Dielectric Strength KV/mm 22 ≥20
Work Temperature   -40~150



● Main Applications:

Ø For the sealing and bonding of LCD decorative lighting and LED lights.

Ø For the bonding and sealing solar photovoltaic module.

Ø Suitable for outside environments.



Specifications & Packages

Ø 310ml/cartridge, 25cartridges/carton.



● How to Use

Ø Keep the object surfaces clean without rusts, dusts and oil.

Ø Dispense the sealants to object surfaces.

Ø Put the objects in the air for 24 hours in the condition of room temperature & 55%RH to reach a cure depth of 2~4mm the longer, the deeper.

Ø The outlet of unspent adhesive should be sealed in time, clean the crusts on the outlet for another use within a short time, the performance of adhesive won’t be affected.



● Storage:

Ø Keep the sealant away from children.

Ø Use it in ventilated places

Ø In case of contact with skins, wipe and then flush with clear water.

Ø In case of contact with eyes, flush with clear water immediately and go to hospital for checking.

Ø Store it in dry and shady places at the temperature of 8~28℃

Ø Storage life is 6 months from the date of manufacture.
